Type 2 standard socket according to EN 62196-1 and VDEAR-E 2623-2-2 up to 32 A / 400 V AC, RFID access
GREEN EDITION = climate-neutrally produced wallbox

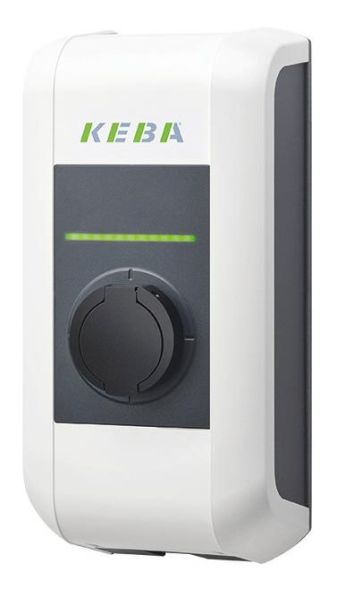

KeContact P30 Wallbox c-series EN Type2 charging socket 22 kW. The wallbox with an output of 22 kW enables Mode 3 charging via the built-in Type 2 standard socket (32 A / 400 V AC). Enables both single-phase and three-phase charging, designed for a charging output of up to 11 kW or 22 kW. includes RFID authorization.
It has an energy meter and can be used as a slave in local load management. The wallbox is of protection class I and corresponds to protection class IP54. It also has an internal DC residual current monitor (RDC-DD > 6mA). The wallbox can be mounted indoors or outdoors, directly on the wall or a column (not included). Additional features: LSA+ terminals (10/100/1,000 Mbit/s) RJ45, USB2.0 Type A, automatic power reduction in case of overtemperature. Standard design cover in white
