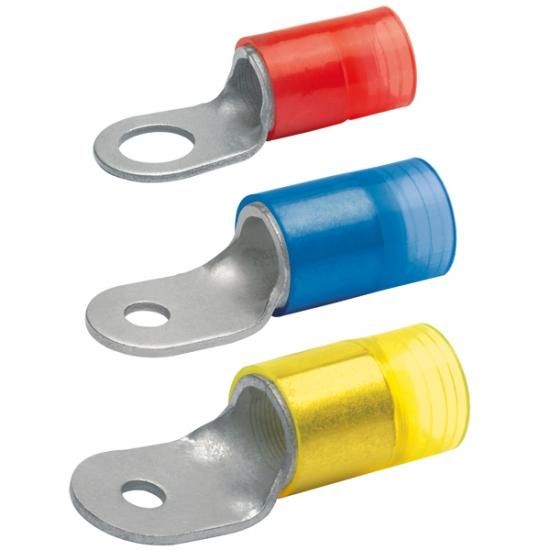

For conductors e.g. according to 0295 class 2, 5 and 6. High-quality brazing process in the pressing area. Insulating sleeve PA, halogen-free, with easy-entry cable entry. Dimensions in the conductor connection area according to DIN 46234. With groove embossing for better contact properties. Color coding depending on the cross-section. Temperature resistance up to 105° C. Galvanically tinned to protect against corrosion. Material Cu-ETP.
| Property | Value |
| Nominal cross section: | 70 mm² |
| Flange shape: | Ring shape |
| Suitable for multi-wire conductors: | yes |
| According to DIN: | no |
| Connection thread size (metric): | 8 |
| Insulation: | without |
| Color of insulation: | yellow |
| Suitable for enamelled wire: | no |
| Surface: | tinned |
| Suitable for fine-stranded conductors: | yes |
| Material: | copper |
| Suitable for flat conductors: | no |
| Tape goods: | no |
| Suitable for solid conductors: | no |
| Suitable for high temperatures (up to 650 °C): | no |
| For tensile connections: | no |
| Suitable for round conductors: | yes |
| Sleeve shape: | short |
| Bolt size (imperial): | 8 |
Features
Color of the insulation
Yellow
Bolt size (imperial)
8
HAB
70qmm L: 61,5mm tinned insulated
Minimal order
50 pcs
Manufacturer
HAN
6578
GTIN
4012078063456
Connection thread size (metric)
8
Tape goods
No
Flange shape
Ring shape
For tensile connections
No
Suitable for flat conductors
No
Suitable for enamelled wire
No
Suitable for round conductors
Yes
Suitable for fine-stranded conductors
Yes
Suitable for high temperatures (up to 650 °C)
No
Suitable for solid ladders
No
Suitable for stranded conductors
Yes
Sleeve shape
Short
Isolation
Without
According to DIN
No
Nominal cross section
70 mm²
Surface
Tinned
Material
Copper
