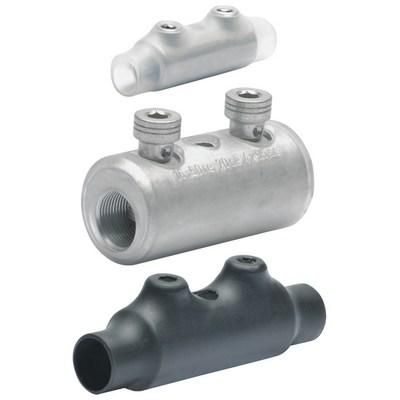

Ideal for connecting identical and unequal conductor cross-sections. For connecting different conductor types and materials according to 0295 Class 1 and 2 and Al conductors according to DIN 48201 Part 5. With inspection hole for checking cable insertion (different materials must not touch). Special groove profile on the inside to destroy the oxidation layer when screwing. Insulated clamp body. Version with 2 screws. Without center bar. Clamping body: high-strength aluminum alloy.
| Property | Value |
| Surface: | bright |
| Oil stop/center bar: | no |
| Voltage series: | up to 15 kV |
| Number of screws: | 2 |
| Nominal cross-section aluminum, SM: | 6 to 25 mm² |
| Nominal cross-section aluminum, RM: | 6 to 25 mm² |
| Nominal cross-section aluminum, SE: | 6 to 35 mm² |
| Nominal cross-section copper, RE: | 6 to 35 mm² |
| Nominal cross-section aluminum, RE: | 6 to 35 mm² |
| Nominal cross-section copper, SM: | 6 to 25 mm² |
| Conductor material: | Aluminum/copper |
| Nominal cross-section copper, RM: | 6 to 25 mm² |
| With insulation: | yes |
| With solder hole: | no |
| Protection class (IP): | other |
Features
Oil stop/central bar
No
Voltage series
Up to 15 kV
Nominal cross-section aluminum, SE
6 to 35 mm²
HAB
Insulated 6-25qmm rm/sm 6-35qmm rm (v) /re/se
Minimal order
4 pcs
Manufacturer
HAN
SV400
GTIN
4012078441018
Surface
Blank
IP protection)
Other
