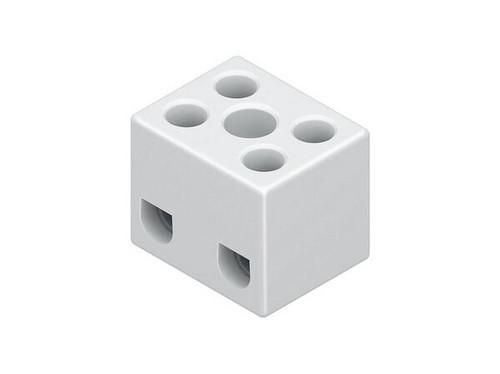

Connection terminal according to DIN EN 60998, with fastening holes, halogen-free. The connection terminal must be fixed in position. Dimensions (approx. dimensions) H x W x L: 16.5 x 17 x 20 mm Clamping range: 1.0 - 4.0 mm² Poles: 2 Material of insulating part: Porcelain, glazed Material of clamping bolt: Brass Material of clamping screws: galvanized. Steel Max. ambient temperature: 200°C Nominal voltage: 450 V Color: white
| Property | Value |
| Color: | white |
| Nominal cross section: | 1 to 4 mm² |
| Nominal voltage: | 450 V |
| Suitable for solid conductors: | yes |
| Suitable for flexible conductors: | yes |
| With operating levers: | no |
| Suitable for multi-wire conductors: | yes |
