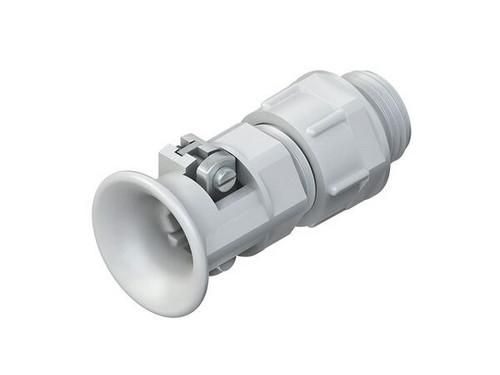

Kleinhuis 1230/16 Zug PG16 CONUS screw connection

Description

Features

Reviews

CONUS cable gland with Pg connection thread in accordance with DIN 40430, with external strain relief and bend protection trumpet, glass fiber reinforced, with flame protection, halogen-free. Nominal size: Pg 16 for cable Ø: 10 - 13 mm Connection thread length: 10 mm Wrench size 1: 24 mm Wrench size 2: 27 mm Glow wire test in accordance with DIN EN 60695-2-10+11/VDE 0471-2-10+11: 650°C Protection class: IP54 with connection thread sealing ring 987/...(please order separately!): IP65 Operating temperature range: -40° to 100°C Material of screw connection body: Polyamide Material of sealing ring: SBR/NBR Material of pressure ring: galvanized, blue pass. Steel color: light gray RAL: 7035 (similar)

Property	Value
Wrench size:	27 mm
Thread pitch:	1.41 mm
Nominal thread size metric/PG:	16
Suitable for cable diameters:	10 to 13 mm
Protection class (IP):	IP54
Operating temperature:	-40 to 100 °C
Halogen-free:	yes
Thread length:	10 mm
Thread type:	PG
Design:	straight
Color:	light gray
Material:	plastic
With strain relief:	yes
Surface:	untreated
Hexagon corner dimension:	29.5 mm
Type of seal:	Sealing ring
Impact resistant:	yes
Bending protection:	yes
RAL number:	7035
Material quality:	Polyamide (PA)
Glass fiber reinforced:	yes
With lock nut:	no
Multiple sealing insert:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
For Ex-zone gas:	without
For Ex-zone dust:	without
