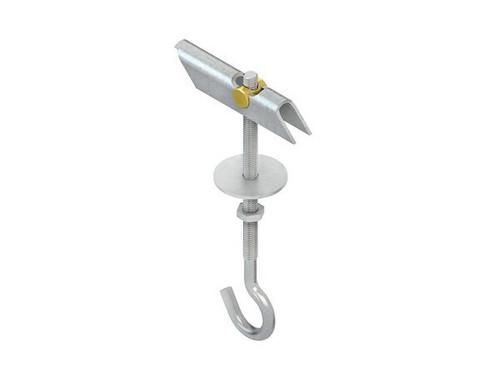

Toggle anchor, with ceiling hook, including 2 washers according to DIN EN ISO 7089 and 2 hexagon nuts according to DIN EN ISO 4035, for use on cavity ceilings and walls. Thread: M 5 Thread length: 80 mm Total length: 130 mm Borehole diameter: 15 mm Required cavity depth: 70 mm Max. plate thickness: 50 mm Permissible load-bearing capacity: 0.6 kN (the load-bearing capacity information includes a 5-fold safety factor and only applies if the substrate has sufficient load-bearing capacity) Material: Steel, galvanized Axle material: Brass
| Property | Value |
| Thread size (metric): | 5 |
| Dowel length: | 70 mm |
| Design: | with ceiling hook |
| Material: | Steel |
| Surface: | galvanized/electrolytically galvanized |
| With washer: | yes |
| Drill hole diameter: | 14 mm |
| Min. cavity depth: | 66 mm |
| Max. plate thickness: | 50 mm |
| With cap nut: | no |
| With hexagon nut: | yes |
Features
Thread size (metric)
5
HAB
M5 100mm hook
Minimal order
25 pcs
Manufacturer
HAN
23H100
GTIN
4011126042757
Version
With ceiling hook
Surface
Galvanized/electrolytically galvanized
Material
Steel
