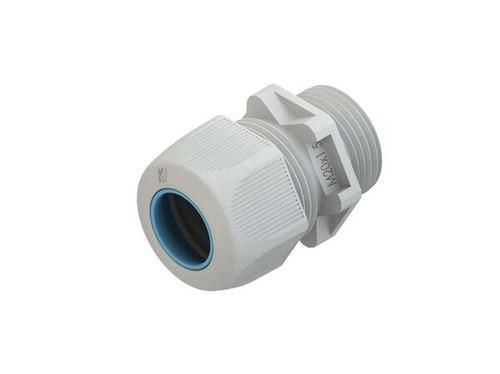

Kleinhuis 350M50 metric-M50 EN 50 262 cable gland

Description

Features

Reviews

Metric cable gland tested according to DIN EN 62444, with metric connection thread according to DIN EN 60423, halogen-free, connection thread sealing ring 987M...please order separately. Tightening the cable gland by hand is only recommended! Nominal size: M 50 for cable Ø: 25 - 34 mm Connection thread length: 14 mm Wrench size: 55 mm Glow wire test according to DIN EN 60695-2-10+11/VDE 0471-2-10+11: 650° Protection class: IP54 Operating temperature range: -30° to 60°C Material of screw connection body: Polystyrene Material of sealing ring: SBR/NBR Material of pressure ring: POM (polyoxymethylene) Color: light gray RAL: 7035 (similar)

Property	Value
Width:	55 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	50
Suitable for cable diameters:	25 to 34 mm
Protection class (IP):	IP54
Operating temperature:	-30 to 60 °C
Halogen-free:	yes
Thread length:	14 mm
Thread type:	metric
Design:	straight
Color:	light gray
Material:	plastic
With strain relief:	no
Surface:	untreated
Hexagon corner dimension:	61 mm
Type of seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
RAL number:	7035
Material quality:	Polystyrene
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable screw connection:	no
Dividable screw connection:	no
Explosion-tested version:	no
For Ex-Zone Gas:	without
For Ex-Zone Dust:	without
