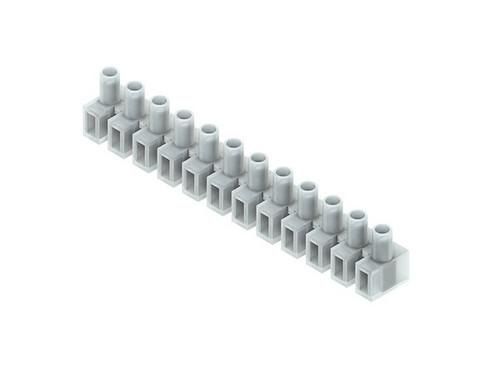

Connection terminal according to DIN EN 60998, with 12 detachable clamping points, halogen-free. Dimensions (approx. dimensions) H x W x L: 20 x 15.5 x 117 mm Clamping range: 1.5 - 6.0 mm² Connection options: 5 x 1.5 mm², 2 x 2.5 mm², 2 x 4.0 mm², 1 x 6.0 mm² Material of insulating part: PA Material of clamping bolt: brass Material of clamping screws: galvanized. Steel Max. ambient temperature according to EN 60998: T85 Nominal voltage: 450 V Color: yellow-green
| Property | Value |
| Number of terminal points: | 12 |
| Color: | other |
| Nominal cross section: | 1.5 to 6 mm² |
| Nominal voltage: | 450 V |
| Suitable for solid conductors: | yes |
| Suitable for flexible conductors: | no |
| With operating levers: | no |
| Suitable for multi-wire conductors: | no |
