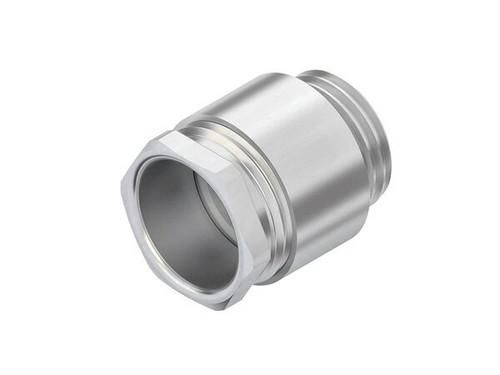

Cable gland with metric connection thread in accordance with DIN EN 60423, with round intermediate socket, with pressure rings and sealing ring, halogen-free. Nominal size: M 25 for cable Ø: 17 - 19 mm Connection thread length: 7 mm Wrench size: 28 mm Operating temperature range: -30° to 100°C Protection class: IP54 with connection thread sealing ring 987M... (please order separately!): IP65 Material of gland body: nickel-plated brass Material of pressure ring: galvanized, blue pass. Steel sealing ring material: SBR/NBR
| Property | Value |
| Wrench size: | 28 mm |
| Thread pitch: | 1.5 mm |
| Nominal thread size metric/PG: | 25 |
| Suitable for cable diameters: | 17 to 19 mm |
| Protection class (IP): | IP54 |
| Operating temperature: | -40 to 100 °C |
| Halogen-free: | yes |
| Thread length: | 7 mm |
| Thread type: | metric |
| Design: | straight |
| Material: | metal |
| With strain relief: | no |
| Surface: | nickel-plated |
| Hexagon corner dimension: | 31.2 mm |
| Type of Seal: | Sealing ring |
| Impact resistant: | yes |
| Bending protection: | no |
| Material quality: | Brass |
| Fiberglass reinforced: | no |
| With lock nut: | no |
| Multiple sealing insert: | no |
| Flat cable gland: | no |
| Dividable Screw connection: | no |
| Explosion-tested version: | no |
| For Ex-Zone Gas: | without |
| For Ex-Zone Dust: | without |
Features
Impact resistant
Yes
Explosion-tested version
No
Nominal thread size metric/PG
25
Fiberglass reinforced
No
Suitable for cable diameter
17 to 19 mm
Wrench size
28 mm
HAB
M25 for cable D: 17-19mm brass
Manufacturer
HAN
490M2521
GTIN
4011126363791
Version
Straight
Operating temperature
-40 to 100 °C
Thread type
Metric
Thread length
7 mm
Thread
1.5 mm
Halogen free
Yes
With strain relief
No
Surface
Nickel-plated
IP protection)
IP54
Material
Metal
Material quality
Brass
