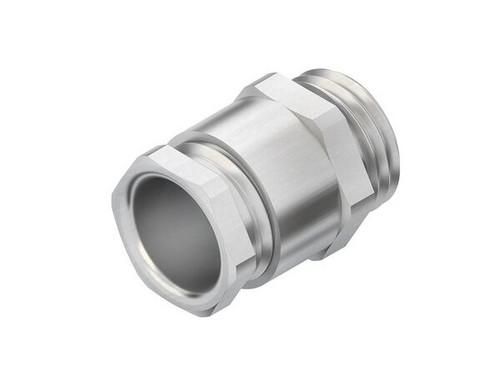

Cable gland with Pg connection thread according to DIN 40430, with hexagon intermediate piece, with pressure rings and sealing ring, halogen-free. Nominal size: Pg 21 for cable Ø: 17 - 19 mm Connection thread length: 7 mm Wrench size 1: 28 mm Wrench size 2: 30 mm Operating temperature range: -30° to 100°C Protection class: IP54 with connection thread sealing ring 987/... (please order separately!): IP65 Material of gland body: nickel-plated brass Material of pressure ring: galvanized, blue pass. Steel sealing ring material: SBR/NBR
| Property | Value |
| Wrench size: | 30 mm |
| Thread pitch: | 1,587 mm |
| Nominal thread size metric/PG: | 21 |
| Suitable for cable diameters: | 17 to 19 mm |
| Protection class (IP): | IP54 |
| Operating temperature: | -40 to 100 °C |
| Halogen-free: | yes |
| Thread length: | 7 mm |
| Thread type: | PG |
| Design: | straight |
| Material: | metal |
| With strain relief: | no |
| Surface: | nickel-plated |
| Hexagon corner dimension: | 33.5 mm |
| Type of Seal: | Sealing ring |
| Impact resistant: | yes |
| Bending protection: | no |
| Material quality: | Brass |
| Fiberglass reinforced: | no |
| With lock nut: | no |
| Multiple sealing insert: | no |
| Flat cable gland: | no |
| Dividable Screw connection: | no |
| Explosion-tested version: | no |
| For Ex-Zone Gas: | without |
| For Ex-Zone Dust: | without |
Features
Impact resistant
Yes
Explosion-tested version
No
Nominal thread size metric/PG
21
Fiberglass reinforced
No
Suitable for cable diameter
17 to 19 mm
Wrench size
30 mm
HAB
MS-PG21
Manufacturer
HAN
530/21
GTIN
4011126012378
Version
Straight
Operating temperature
-40 to 100 °C
Thread type
PG
Thread length
7 mm
Thread
1,587 mm
Halogen free
Yes
With strain relief
No
Surface
Nickel-plated
IP protection)
IP54
Material
Metal
Material quality
Brass
