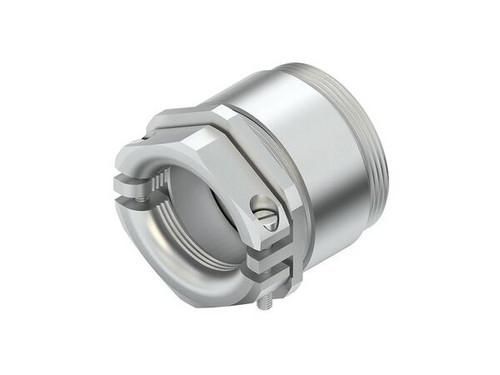

Cable gland with Pg connection thread according to DIN 40430, with external strain relief, cable bend protection, round intermediate socket, pressure rings, sealing ring and screws, halogen-free. Nominal size: Pg 13.5 for cable Ø: 11 - 13 mm Connection thread length: 6.5 mm Wrench size: 20 mm Operating temperature range: -30° to 100°C Protection class: IP54 with connection thread sealing ring 987/... (please order separately!): IP65 Material of gland body: nickel-plated brass Material of pressure ring: galvanized blue pass. Steel sealing ring material: SBR/NBR
| Property | Value |
| Wrench size: | 22 mm |
| Thread pitch: | 1.41 mm |
| Nominal thread size metric/PG: | 13.5 |
| Suitable for cable diameters: | 11 to 13 mm |
| Protection class (IP): | IP54 |
| Operating temperature: | -40 to 100 °C |
| Halogen-free: | yes |
| Thread length: | 6.5 mm |
| Thread type: | PG |
| Design: | straight |
| Material: | metal |
| With strain relief: | yes |
| Surface: | nickel-plated |
| Hexagon corner dimension: | 26.5 mm |
| Type of seal: | Sealing ring |
| Impact resistant: | yes |
| Bending protection: | yes |
| Material quality: | Brass |
| Fiberglass reinforced: | no |
| With lock nut: | no |
| Multiple sealing insert: | no |
| Flat cable gland: | no |
| Dividable screw connection: | no |
| Explosion-tested version: | no |
| For Ex-zone gas: | without |
| For Ex-zone dust: | without |
Features
Impact resistant
Yes
Explosion-tested version
No
Nominal thread size metric/PG
13.5
Fiberglass reinforced
No
Suitable for cable diameter
11 to 13mm
Wrench size
22 mm
HAB
Train MS PG13.5
Manufacturer
HAN
923/13
GTIN
4011126010992
Version
Straight
Operating temperature
-40 to 100 °C
Thread type
PG
Thread length
6.5 mm
Thread
1.41 mm
Halogen free
Yes
With strain relief
Yes
Surface
Nickel-plated
IP protection)
IP54
Material
Metal
Material quality
Brass
