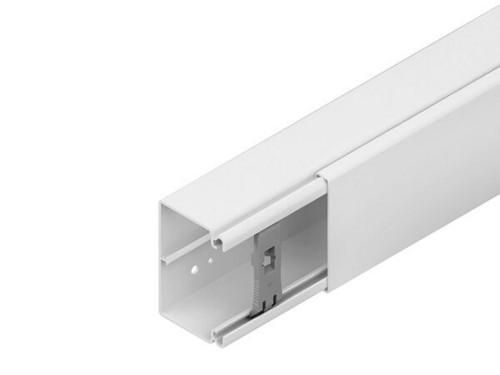

Electrical installation duct, with cover and two rows of alternating fastening holes in the base, without partition wall, mounting profile in the base for a partition wall, including 4 retaining clips K... each 2 m delivery length, halogen-containing.certified! Retaining clips: 4 x K90 Dimensions (approx. dimensions) H x W: 60 x 88 mm Two-row bottom holes: Ø 6.5 x 12 mm, Ø 6.5 mm and 2 x Ø 4.2 mm Bottom hole spacing Grid dimension: 125 mm Row spacing: 48 mm Delivery length L: 2000 mm Material: PVC-hard (polyvinyl chloride) Color: pure white RAL: 9010 (similar)
| Property | Value |
| Length: | 2000 mm |
| Height: | 60 mm |
| Width: | 88 mm |
| Color: | pure white |
| RAL number: | 9010 |
| Material: | Plastic |
| Material quality: | Polyvinyl chloride (PVC) |
| Usable cross-section: | 4150 mm² |
| Transparent: | no |
| Halogen-free: | no |
| Mounting type: | Bottom perforation |
| Suitable for functional integrity: | no |
| Surface: | untreated |
| Cover design: | loose |
| Number of pluggable partitions: | 1 |
| With cable retaining clip: | yes |
| With protective film: | no |
| With duct connector: | yes |
| Delivery on a roll: | no |
Features
Suitable for Functional integrity
No
HAB
HKL6090.3 60x90 pure white
Minimal order
2 meters
Manufacturer
HAN
HKL6090.3
GTIN
4011126348057
Cover design
Loose
Mounting type
Bottom perforation
Width
88 mm
Color
Halogen free
No
Height
60 mm
Length
2000 mm
Surface
Untreated
RAL number
9010
Transparent
No
Material
Plastic
Material quality
Polyvinyl chloride (PVC)
