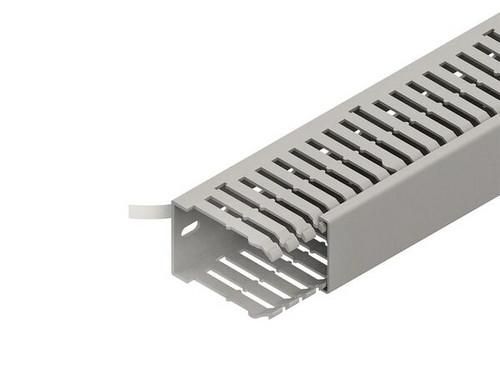

Wiring duct according to DIN EN 50085-2-3, with cover and single-row fastening holes according to former DIN 43659 in the duct base, provided with double-sided adhesive tape on the underside for better fixing, the bars can be broken out without tools, contains halogen. Dimensions H x W (approx. dimensions): 50 x 50 mm Slot width: 5 mm Web width: 7.5 mm Single row bottom holes: 6.5 x 14 and 4.5 x 8 mm Bottom hole spacing: 25 mm Delivery length L: 2000 mm Operating temperature range: -5° to 65°C Material: Polyvinyl chloride, hard (PVC-hard) Color: stone gray RAL: 7030 (similar)
| Property | Value |
| Height: | 50 mm |
| Width: | 50 mm |
| Length: | 2000 mm |
| Color: | stone gray |
| Halogen-free: | no |
| With top: | yes |
| Slot spacing: | 5 mm |
| Slot width: | 5 mm |
| Side wall design: | slotted |
| Flexible: | no |
| Tracking current resistant: | yes |
| Usable cross-section: | 2100 mm² |
| Mounting type: | self-adhesive and bottom perforation |
| Self-extinguishing: | yes |
Features
Self-extinguishing
Yes
HAB
VKD5050 50x50 grey
Minimal order
24 meters
Manufacturer
HAN
VKD5050
GTIN
4011126370591
Mounting type
Self-adhesive and bottom perforation
Width
50 mm
Color
Flexible
No
Halogen free
No
Height
50 mm
Length
2000 mm
