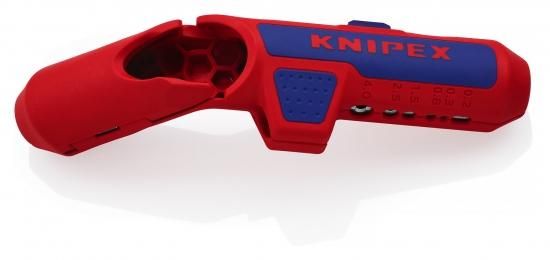

16 95 02 SB KNIPEX ErgoStrip For fast and precise stripping of all common round and damp-proof cables (e.g. NYM cable 3 x 1.5 mm² to 5 x 2.5 mm²), data cables (e.g. twisted pair) and coaxial cables. Innovative, ergonomic pistol grip design for easy cutting, pulling and cutting of the sheathing lengthwise. Conically slimmed down tool ends for better accessibility in tight spaces. Stripping device for cross-sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm². Simplified insertion of individual conductors for stripping thanks to positioning bars. With opening spring and locking pawl. Comfortable insertion of coaxial and data cables thanks to opening aid. Multi-component design with soft plastic zone for comfortable handling and a secure hold. for left-handed people. - Stripping values for round cables (diameter): Ø 8 – 13mm - Stripping values for conductors and strands: 0.2 — 4.0mm² - Stripping values for coaxial cables (diameter): Ø 4.8 – 7.5mm - Stripping values for data cables: CAT 5 - 7, twisted pair (UTP/STP) - Stripping values: Ø 8.0 — 13.0mm. Stripping tool, Ø8-13mm, 0.2-4mm², longitudinal cut, round cut, spiral cut
| Property | Value |
| Gross length (mm): | 135 |
| Gross width (mm): | 36 |
| Gross height (mm): | 56 |
| Diameter from/to (mm): | 8...13 |
| Cross section from/to (mm²): | 0.2...4 |
| Stripping range AWG: | 0...0 |
| Notch depth adjustable: | no |
| Longitudinal cut: | yes |
| Round cut: | yes |
| Spiral cut: | yes |
| Replaceable blades: | no |
