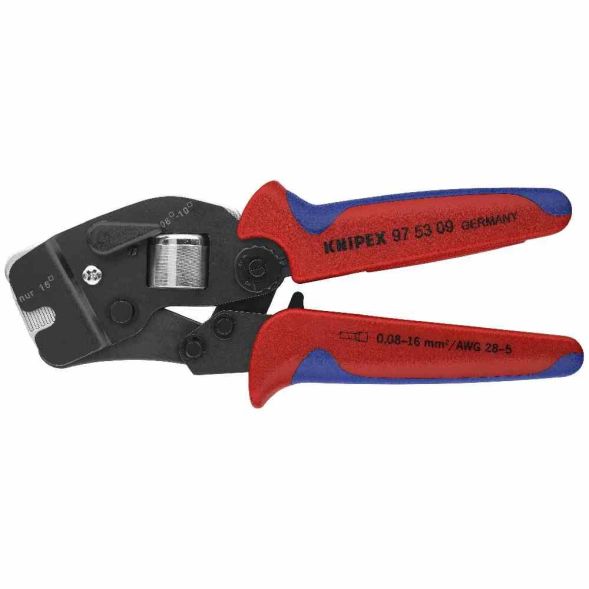

97 53 09 Self-adjusting crimping pliers for wire end ferrules For crimping wire end ferrules in accordance with DIN 46228 Parts 1 + 4. Self-adjusting adjustment to the required wire end ferrule size: no crimping errors due to using the wrong crimping insert. Front insertion of the wire end ferrules into the tool. Consistently high crimp quality due to positive lock (can be unlocked). Crimping pressure is precisely set at the factory (calibrated). Power amplification through knee lever for fatigue-free work. High operating comfort due to handy design and low weight. Approved crimping according to UL in conjunction with the KNIPEX-AEH 97 99 330 – 399. UL approval in conjunction with KNIPEX-AEH 97 99 330 – 399. Crimping from 0.08 to 10.0 mm² and 16.0 mm² in one profile. with selector lever for setting the crimping range 0.08 to 10 or 16.0 mm². also suitable for twin wire end ferrules up to 2 x 10 mm², but smaller than Ø 6.6 mm (e.g. KNIPEX item no. 97 99 377). - Application: wire end ferrules - Capacity square millimeters: 0.08 — 10 / 16mm² - Number of nests: 1 - AWG: 28 — 6. Notching pliers, mechanical, wire end ferrules, 0.08-10 + 16 mm², notching
| Property | Value |
| Weight (kg): | 0.48 |
| Gross length (mm): | 189 |
| Gross width (mm): | 78 |
| Gross height (mm): | 23 |
| Suitable for: | Wire end ferrules |
| Design/operation: | mechanical |
| Cross section from/to (mm²): | 10...16 |
| AWG range: | 0...0 |
| With replaceable Inserts: | no |
| With automatic return: | no |
