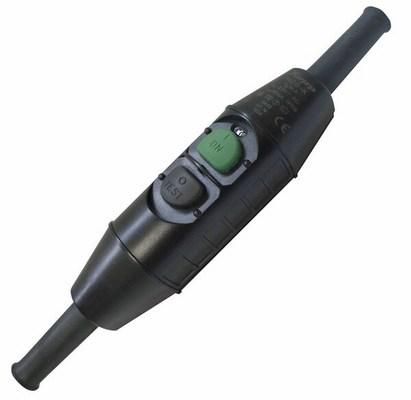

PRCD-K, IP55, 230VAC, 16A, I n 30mA, test mark: VDE
| Property | Value |
| Rated voltage: | 230 V |
| Current: | 16 A |
| Fault current: | 30 A |
| Mounting type: | Cable |
| Protection class (IP): | IP55 |
| Frequency: | 50 Hz |
| Number of poles: | 3 |
| Selective type: | no |
| Residual current type: | A |
| Additional equipment possible: | no |
| Short-circuit strength (Icw): | 1,500 kA |
| Surge current strength: | 0.025 kA |
| Short-time delayed type: | no |
| Rated insulation voltage Ui: | 1500 V |
| Rated impulse withstand voltage Uimp: | 2.50 kV |
| With locking device: | no |
| Ambient temperature during operation: | -25 to 40 °C |
| Pollution degree: | 2 |
| Connectable conductor cross-section, stranded: | 1.50 to 2.50 mm² |
| Type of voltage: | AC |
| Explosion-proof: | no |
Features
HAB
PRCD-K 30mA 16A 230VAC IP55
Manufacturer
HAN
190400015
GTIN
4008224434317
Connectable conductor cross-section stranded
1.50 to 2.50 mm²
Rated insulation voltage Ui
1500V
Rated voltage
230V
Rated impulse withstand voltage Uimp
2.50kV
Explosion-proof
No
Residual current type
A
Frequency
50Hz
Suitable for outdoor use
No
Short circuit strength (Icw)
1,500kA
Short-time delayed type
No
With locking device
No
Mounting type
Cable
Number of poles
3
IP protection)
IP55
Selective type
No
Voltage type
AC
Surge current strength
0.025kA
Ambient temperature during operation
-25 to 40 °C
Degree of contamination
2
Additional equipment possible
No
