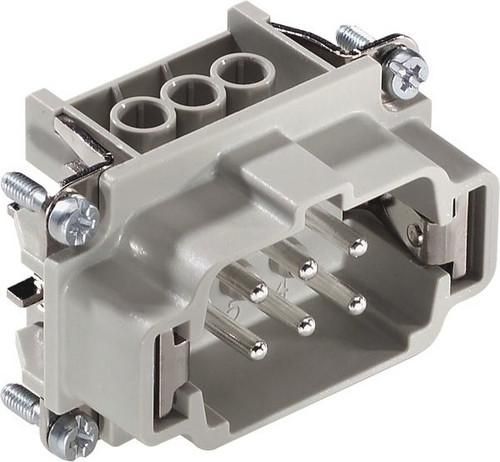

Lapp 10190000 EPIC H-BE 6 SS DR pin insert

Description

Features

Reviews

Mechanical engineering, plastics industry, event technology, railway applications/vehicle construction, The standard inserts with screw, crimp, cage clamp and push-in connection, The possibility of use with higher voltages and currents as well as a high level of reliability characterize the proven EPIC® H-BE series., Use for railway applications - fire protection in rail vehicles: Testing according to EN 45545-2. Requirement set R22 and R23. Hazard level HL1, HL2 and HL3., UL tested for applications in control cabinets according to UL 508 / UL 2237,

Property	Value
Number of poles:	6
Rated current In:	16 A
Rated impulse voltage:	6 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	0.5 to 2.5 mm²
Material of Connector insert:	Thermoplastic
Rated voltage:	500 V
Overvoltage category:	III
Ambient temperature:	-40 to 125 °C
Contact design:	Pin
Diameter of the plug contact:	2.5 mm
Pollution level:	3
Material of the contact:	Brass
Connectable conductor cross-section, single-wire:	0.5 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.5 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.5 to 2.5 mm²
Contact insert without contacts:	no
Material of the contact coating:	Silver
Design of the electrical connection:	Screw connection
With Wire protection:	yes
Flammability class of the insulating material according to UL 94:	V0
Min. number of mating cycles:	500
Width:	34 mm
Height:	31 mm
Depth:	51 mm
