On electrical devices and machines that are moved during normal use, the connected cable must be protected against excessive bending in accordance with 0700-1., Hand-held devices, Portable equipment, Construction sites, Moving machine parts, Reliable bending and kink protection, High strain relief, Robust, For cables and lines with a large outer diameter, High protection class, PG connection thread,
| Property | Value |
| Wrench size: | 50 mm |
| Metric thread size: | 36 |
| Suitable for cable diameters: | 30 to 33 mm |
| Protection class (IP): | IP65 |
| Operating temperature: | -20 to 80 °C |
| Halogen-free: | no |
| Thread length: | 9 mm |
| Thread type: | PG |
| Color: | other |
| Material: | Metal |
| Impact-resistant: | no |
| Material quality: | Brass |
| Design: | straight |
| With strain relief: | yes |
| Surface protection: | nickel-plated |
| Type of seal: | Sealing ring |
| Bending protection: | yes |
| Fiberglass reinforced: | no |
| With lock nut: | no |
| Flat cable gland: | no |
| Explosion-tested version: | no |
| For Ex zone dust: | without |
| Snaps into opening: | no |
| For armored cables: | no |
| EMC version: | no |
| Shielded: | no |
Features
Impact resistant
No
Explosion-tested version
No
Fiberglass reinforced
No
Shielded
No
Suitable for cable diameter
30 to 33 mm
Wrench size
50 mm
HAB

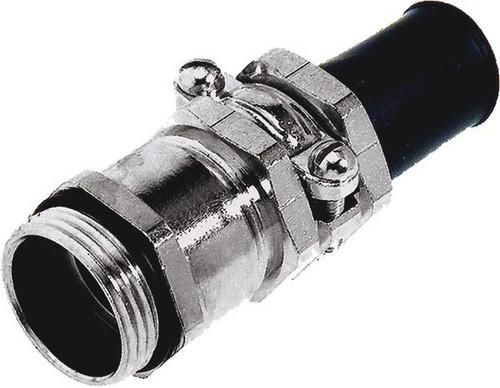

SKINDICHT SR PG 36/33
Minimal order
Pcs
Manufacturer
HAN
52001170
GTIN
4044773414233
Version
Straight
EMC version
No
Operating temperature
-20 to 80 °C
Color
Thread type
PG
Thread length
9 mm
Halogen free
No
With strain relief
Yes
Surface protection
Nickel-plated
IP protection)
IP65
Material
Metal
Material quality
Brass
