in areas with high demands on special mechanical, chemical stability, chemical industry, measurement, control and regulation technology, machine and apparatus engineering, plant engineering, high functional reliability, for cable diameters up to 98 mm, optimal strain relief, large, variable clamping ranges, metric connection thread in accordance with DIN EN 60423, basis for technical information DIN IEC 62444, UL File No. E79903,
| Property | Value |
| Wrench size: | 67 mm |
| Thread pitch: | 1.5 mm |
| Nominal thread size metric/PG: | 63 |
| Suitable for cable diameter: | 34 to 45 mm |
| Protection class (IP): | IP68 |
| Operating temperature: | -40 to 100 °C |
| Halogen-free: | no |
| Thread length: | 15 mm |
| Thread type: | metric |
| Design: | straight |
| Color: | other |
| Material: | Metal |
| With strain relief: | yes |
| Surface: | nickel-plated |
| Type of seal: | Sealing ring |
| Impact-resistant: | yes |
| Bending protection: | no |
| Material quality: | Brass |
| Fiberglass reinforced: | no |
| With Lock nut: | no |
| Multiple sealing insert: | no |
| Flat cable screw connection: | no |
| Dividable screw connection: | no |
| Explosion-tested version: | no |
| For Ex-Zone Gas: | without |
| Snaps into opening: | no |
| For armored cables: | no |
| EMC version: | no |
| Shielded: | no |
Features
Impact resistant
Yes
Explosion-tested version
No
Nominal thread size metric/PG
63
Fiberglass reinforced
No
Shielded
No
Suitable for cable diameter
34 to 45mm
Wrench size
67 mm
HAB

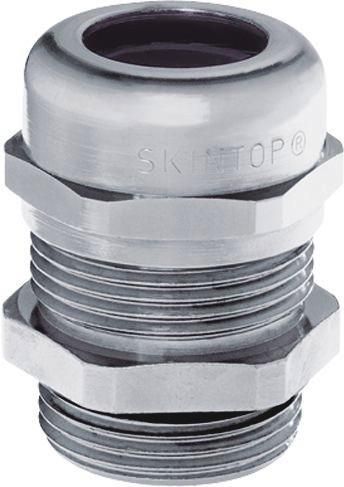

SKINTOP MS-M 63X1,5
Minimal order
Pcs
Manufacturer
HAN
53112070
GTIN
4044773173093
Version
Straight
EMC version
No
Operating temperature
-40 to 100 °C
Color
Thread type
Metric
Thread length
15 mm
Thread
1.5 mm
Halogen free
No
With strain relief
Yes
Surface
Nickel-plated
IP protection)
IP68
Material
Metal
Material quality
Brass
