Devices, machines and systems with ignition protection type increased safety 'e', device group II / category 2G+1D, mobile offshore and ship applications, chemical and petrochemical industry, high functional reliability, high strain relief, large, variable clamping ranges, cold impact resistance, metric connection thread in accordance with DIN EN 60423, basis for technical information DIN IEC 62444, UL File No. E79903, SKINTOP® MS-M-XL ATEX is identical to SKINTOP® MS-M ATEX, but with a long connection thread for thick walls,
| Property | Value |
| Wrench size: | 45 mm |
| Thread pitch: | 1.5 mm |
| Nominal thread size metric: | 40 |
| Suitable for cable diameters: | 19 to 28 mm |
| Protection class (IP): | IP68 |
| Operating temperature: | -40 to 100 °C |
| Halogen-free: | no |
| Thread length: | 9 mm |
| Thread type: | metric |
| Color: | other |
| Material: | Metal |
| Impact-resistant: | yes |
| Material quality: | brass |
| Design: | straight |
| With strain relief: | yes |
| Surface protection: | nickel-plated |
| Type of seal: | Sealing ring |
| Bending protection: | no |
| Fiberglass reinforced: | no |
| With lock nut: | no |
| Multiple sealing inserts: | no |
| Flat cable gland: | no |
| Dividable gland: | no |
| Explosion-tested version: | yes |
| For Ex-Zone Gas: | without |
| For Ex-Zone Dust: | 20, 21, 22 |
| Snaps into opening: | no |
| For armored cables: | no |
| EMC version: | no |
| Shielded: | no |
Features
Impact resistant
Yes
Explosion-tested version
Yes
Fiberglass reinforced
No
Shielded
No
Suitable for cable diameter
19 to 28mm
Wrench size
45 mm
HAB

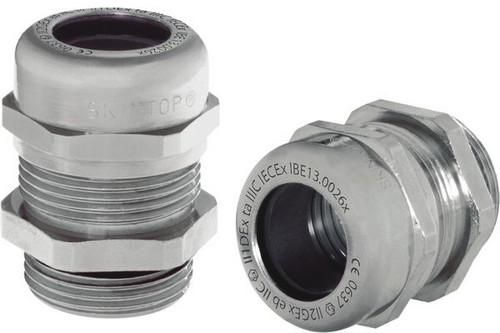

SKINTOP MS-M 40X1,5 ATEX
Minimal order
10 pcs
Manufacturer
HAN
53112750
GTIN
4044773169911
Version
Straight
EMC version
No
Operating temperature
-40 to 100 °C
Color
Thread type
Metric
Thread length
9 mm
Thread
1.5 mm
Halogen free
No
With strain relief
Yes
Surface protection
Nickel-plated
IP protection)
IP68
Material
Metal
Material quality
Brass
