Description
With reducing sealing insert to seal cables with a smaller outer diameter., For use see SKINTOP® COLD, Metric connection thread in accordance with DIN EN 60423, Basis for technical information DIN IEC 62444,
| Property | Value |
| Wrench size: | 36 mm |
| Thread pitch: | 1.5 mm |
| Nominal thread size metric: | 32 |
| Suitable for cable diameters: | 7 to 15 mm |
| Protection class (IP): | IP68 |
| Operating temperature: | -70 to 100 °C |
| Halogen-free: | no |
| Thread length: | 9 mm |
| Thread type: | metric |
| Color: | other |
| Material: | metal |
| Impact-resistant: | yes |
| Material quality: | brass |
| Design: | straight |
| With strain relief: | yes |
| Surface protection: | nickel-plated |
| Type of seal: | Sealing ring |
| Bending protection: | no |
| Fiberglass reinforced: | no |
| With lock nut: | no |
| Multiple sealing insert: | no |
| Flat cable gland: | no |
| Dividable gland: | no |
| Explosion-tested version: | no |
| For Ex zone gas: | without |
| Snaps into opening: | no |
| For armored cables: | no |
| EMC version: | no |
| Shielded: | no |
Features
Impact resistant
Yes
Explosion-tested version
No
Fiberglass reinforced
No
Shielded
No
Suitable for cable diameter
7 to 15 mm
Wrench size
36 mm
HAB

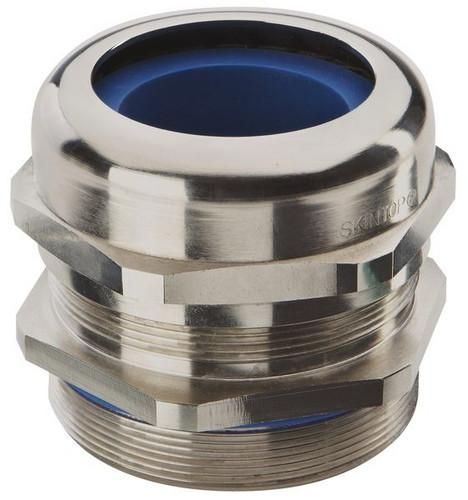

SKINTOP COLD-R M 32X1,5
Minimal order
25 pcs
Manufacturer
HAN
53113640
GTIN
4044774398556
Version
Straight
EMC version
No
Operating temperature
-70 to 100 °C
Color
Thread type
Metric
Thread length
9 mm
Thread
1.5 mm
Halogen free
No
With strain relief
Yes
Surface protection
Nickel-plated
IP protection)
IP68
Material
Metal
Material quality
Brass
