For EMC-compliant grounding of the copper braided shield, or for cables with a corrugated copper sheath, automation systems, for EMC contacting with through-holes, control cabinet construction, conveyor and transport systems, visible, large-area shield contact, optimal, low-resistance 360° shield contact, easy disassembly, uncomplicated and safe, cutting edges cut through the insulating layer of the housing or control cabinet when tightened and thus ensure optimal contact, metric connection thread in accordance with DIN EN 60423, basis for technical information DIN IEC 62444,
| Property | Value |
| Width across flats: | 63 mm |
| Thread pitch: | 1.5 mm |
| Nominal thread size metric: | 63 |
| Operating temperature: | -40 to 100 °C |
| Halogen-free: | no |
| Thread length: | 12 mm |
| Thread type: | metric |
| Color: | other |
| Material: | metal |
| Impact resistant: | yes |
| Material quality: | brass |
| Design: | straight |
| With strain relief: | no |
| Surface protection: | nickel-plated |
| Bending protection: | no |
| Fiberglass reinforced: | no |
| With lock nut: | no |
| Multiple sealing insert: | no |
| Flat cable gland: | no |
| Dividable gland: | no |
| Explosion-tested version: | no |
| For Ex zone gas: | without |
| Snaps into opening: | no |
| For armored cables: | no |
| EMC version: | yes |
| Shielded: | no |
Features
Impact resistant
Yes
Explosion-tested version
No
Fiberglass reinforced
No
Shielded
No
Wrench size
63 mm
HAB

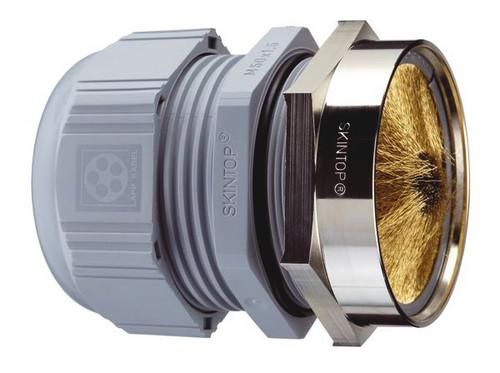

SKINTOP BRUSH ADD-ON M63
Manufacturer
HAN
54110846
GTIN
4044776456667
Version
Straight
EMC version
Yes
Operating temperature
-40 to 100 °C
Color
Thread type
Metric
Thread length
12 mm
Thread
1.5 mm
Halogen free
No
With strain relief
No
Surface protection
Nickel-plated
Material
Metal
Material quality
Brass
