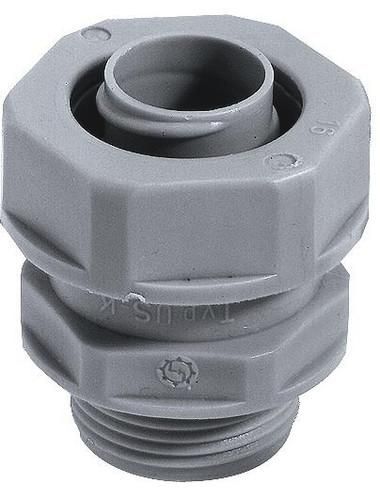

In combination with cable protection hose:, SILVYN® FPS/ FD-PU, SILVYN® SP/SP-PU, Indoor applications, Light mechanical stress, Quick and easy assembly, Vibration protection, No additional screw connections required, Metric connecting thread, 6-edge intermediate socket, screw-in sleeve, union nut, Large wrench sizes,
| Property | Value |
| Nominal size in inches: | 1 1/4 inch |
| Perm. in combination with protective hose DIN EN 61386-23: | yes |
| With integrated holder: | no |
| Thread connection size: | M40 x 1.5 |
| Material of the screw connection: | Polypropylene (PP) |
| Nominal diameter: | 45.0 mm |
| Design: | straight |
| Rotatable thread: | no |
| Design: | External thread |
| Connection type: | Thread |
| Thread length: | 15.0 mm |
| One-piece: | no |
| Seal material: | Thermoplastic elastomers (TPE) |
| Smallest inside diameter of the hose: | 38.0 mm |
| Color: | gray |
| Perm. in combination with protective hose UR: | yes |
| Total length: | 51.0 mm |
| Protection class (IP): | IP54 |
Features
One-piece
No
Smallest inner diameter of the hose
38.0 mm
Approved in combination with protective hose DIN EN 61386-23
Yes
Approved in combination with protective hose UR
Yes
HAB
SILVYN USK M40
Minimal order
25 pcs
Manufacturer
HAN
55501360
GTIN
4044773265965
Version
Straight
Design
External thread
Rotating thread
No
Color
Overall length
51.0 mm
Thread connection size
M40x1.5
Thread length
15.0 mm
Nominal diameter
45.0 mm
Nominal size in inches
1 1/4 inch
IP protection)
IP54
Connection type
Thread
