Food processing machines, systems and components, pharmaceutical industry, mechanical engineering, Hygienic design for optimal cleaning results, Smooth surfaces and no edges prevent the accumulation of liquids and the formation of microorganisms, Material and shape offer easy and safe cleaning, Clearly distinguishable from food due to the blue coloring of the sealing material, Rounded key surfaces for assembly with standard tools, DIN EN 1672-2 Food processing machines - General design principles, DIN EN ISO 14159 Safety of machinery - Hygiene requirements for the design of machines, High chemical and thermal resistance to very aggressive media such as cleaning agents and disinfectants, acids and alkalis during cleaning processes, etc.,
| Property | Value |
| Thread connection size: | M32 x 1.5 |
| Perm. in combination with protective hose DIN EN 61386-23: | yes |
| Rotatable thread: | no |
| Design: | straight |
| Construction: | external thread |
| One-piece: | no |
| Approved in combination with protective hose UL: | no |
| Approved in combination with protective hose CSA: | no |
| Approved in combination with protective hose FI: | no |
| Material of the housing: | stainless steel |
| Surface: | other |
| Operating temperature: | -50 to 135 °C |
| Thread type: | metric |
| Connection type of the screw connection to the housing: | thread |
| Number of entries: | 1 |
Features
One-piece
No
Connection type of screw connection to the housing
Thread
Approved in combination with protective hose DIN EN 61386-23
Yes
Approved in combination with protective hose CSA
No
HAB

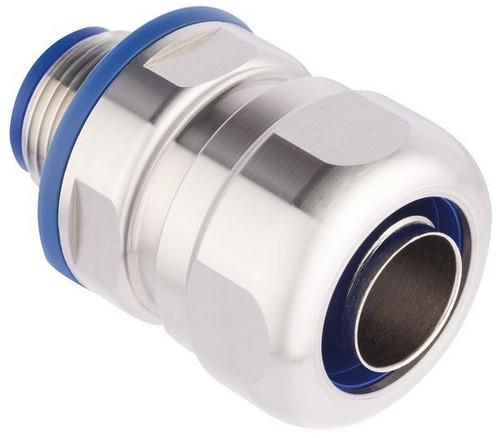

SILVYN HYGIENIC M32x1,5
Manufacturer
HAN
55510703
GTIN
4044777170333
Version
Straight
Design
External thread
Rotating thread
No
Operating temperature
-50 to 135 °C
Thread connection size
M32x1.5
Thread type
Metric
Surface
Other
Housing material
Stainless steel
