Vehicle construction, shipbuilding, mechanical engineering, electrical industry, wherever cables and lines need to be subsequently protected, dimensionally stable, flexible, pressure-resistant, subsequent all-round protection, quick and easy assembly, divisible corrugated hose, halogen-free (PA6), abrasion-resistant, increased resistance to oil, petrol and other chemicals, very good UV and weather resistance (SILVYN® SPLIT PP UV),
| Property | Value |
| Lengthwise slit: | yes |
| Lockable (two-part): | yes |
| Approval according to DIN EN 61386-23: | yes |
| Approval according to NF F 16-101: | no |
| Nominal diameter: | 45 mm |
| Inner diameter: | 43.1 mm |
| Outer diameter: | 54 mm |
| Operating temperature: | -40 to 120 °C |
| Bending radius, static: | 70 mm |
| UV-resistant: | yes |
| Oil-resistant: | yes |
| Color: | black |
| Sheathing material: | without sheathing |
| Flame-spreading: | no |
| Halogen-free: | yes |
| Approval according to UR: | no |
| Material: | Polyamide 6 |
| Bending behavior: | flexible |
| With pull wire: | no |
| Highly slippery inner layer: | no |
Features
Inner diameter
43.1 mm
Bending radius, static
70 mm
Bending behavior
Flexibel
Flame propagating
No
HAB

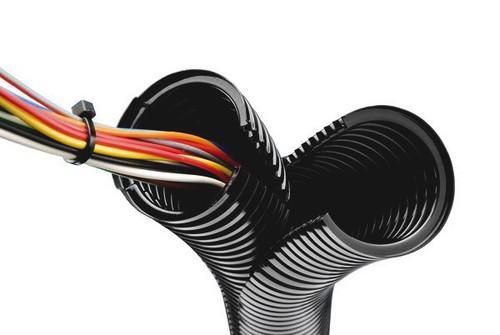

SILVYN SPLIT 45/43,1x54,2 BK RG25m
Minimal order
25 meters
Manufacturer
HAN
61806670
GTIN
4044773198508
Outer diameter
54 mm
Operating temperature
-40 to 120 °C
Color
Halogen free
Yes
Nominal diameter
45 mm
UV-resistant
Yes
Material
Polyamide 6
