Mechanical engineering, automotive industry, conveyor technology, railway applications / vehicle construction, wherever electromagnetic interference fields can occur., Optimal EMC protection, Tensile strength, Increased impact resistance, Flexible, Increased mechanical load-bearing capacity, Spiral-wound metal protective hose with hook profile, Copper braid, tinned, A shielding factor of 30 MHz according to EN 50289-1-6 up to 80dB can be achieved.,
| Property | Value |
| Nominal diameter: | 10.0 mm |
| Surface protection: | galvanized |
| Sheathing material 1st layer: | other |
| Sheathing material 2nd layer (outer): | without sheathing |
| Inner diameter: | 7.0 mm |
| Outer diameter: | 10 mm |
| Compressive strength: | 1250 N |
| Tensile strength: | 500 N |
| Bending radius, static: | 16 mm |
| Weight: | 0.120 kg/m |
| Hanging load: | 450 N |
| Electrical properties: | with conductive properties |
| Flame propagating: | no |
| Suitable for Ex areas: | no |
| Approval according to FI: | no |
| With approval according to UL: | no |
| Material: | steel |
| Protection class (IP): | IP40 |
| Bending behavior: | flexible |
Features
Inner diameter
7.0 mm
Bending radius, static
16 mm
Bending behavior
Flexibel
Flame propagating
No
HAB

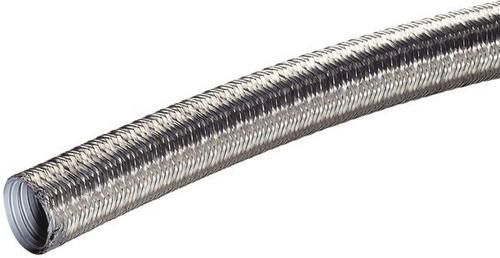

SILVYN EMC AS-CU 10 / 7X10 50M
Minimal order
50 meters
Manufacturer
HAN
64400500
GTIN
4044773825343
Outer diameter
10 mm
Weight
0.120 kg/m
Nominal diameter
10.0 mm
Surface protection
Galvanized
IP protection)
IP40
Material
Steel
