Description
Features
Reviews
Product family advantages: Wide product range from 20 W to 250 W. Installation in extremely cold and hot environments. Very stable output power. High electronically reversible short-circuit, overload, over-temperature protection. Smart Power Supply: Increased power delivery when switching on cold LEDs. Independent installation possible. Product family features: DC mode functionality. Protection class: IP66 and IP67. Overvoltage protection: up to 4 kV (LN) / 6 kV (L/N-PE). Wide operating temperature range: -30+55 °C. Service life: up to 50,000 h (temperature at max. tc). Areas of application: Facades, public places, cruise ships. Illuminated advertising. Suitable for indoor and outdoor installations.
| Feature | Value |
| Output power: | 120 W |
| Length: | 258.0 mm |
| Width: | 51.0 mm |
| Height: | 45.0 mm |
| Protection class (IP) : | IP64 |
| Design: | static |
| Housing: | metal housing |
| Suitable for outdoor use: | no |
| Output voltage: | 24 V |
| Suitable for Constant voltage: | yes |
| Suitable for constant current: | no |
| Suitable for direct voltage (primary side) : | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DSI: | no |
| Dimming DMX: | no |
| Dimming potentiometer (integrated in device) : | no |
| Dimming GPRS: | no |
| LineSwitch dimming: | no |
| Manufacturer-specific dimming: | no |
| Mains voltage modulation dimming: | no |
| Trailing edge dimming: | no |
| Phase control dimming: | no |
| Phase control dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine Wave Reduction dimming: | no |
| Touch and Dim dimming: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
Features
Suitable for constant current
No
Suitable for constant voltage
Yes
Output power
120 W
HAB

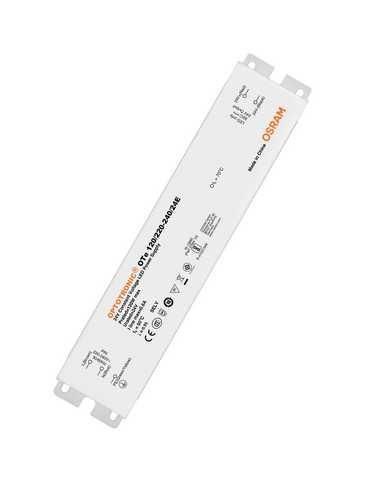

OT 120/220-240/24 E FS1
Manufacturer
HAN
4008321645715
GTIN
4008321645715
Version
Static
Output voltage
24V
Width
51.0 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Suitable for outdoor use
No
Housing
Metal housing
Height
45.0 mm
Length
258.0 mm
Without dimming function
Yes
