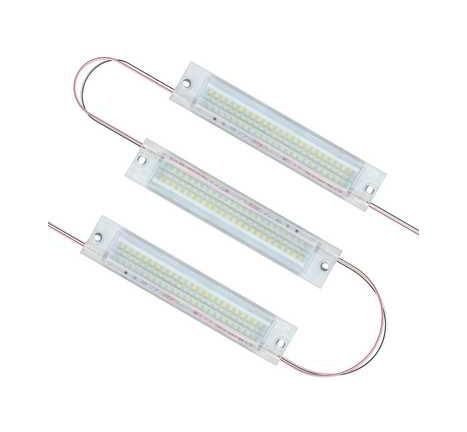

Product family advantages: Modules compatible with BackLED mounting profile. Uniform illumination thanks to optimized elliptical lenses. Several options for quick and easy installation: screwing or snapping into mounting profile. Very high module efficiency: up to 106 lm/W. Consistent white light (standard deviation of color matching SDCM: <3). Very long service life: up to 50,000 h (L70/B50). ENEC validated. 5-year guarantee. Product family features: Chain of 16 linear LED modules for the EU market or 20 linear LED modules for Asia. Connected with flexible cables. Areas of application: Illuminated advertising and illuminated signs. Illumination of single and double-sided light boxes. Technical equipment: Various OPTOTRONIC© 24 V control gear available.
| Property | Value |
| Color temperature: | 3000 K |
| Energy efficiency class: | G |
| Protection class (IP) : | IP20 |
| Number of LEDs: | 24 |
| Beam angle: | 12 ° |
| Length: | 180.0 mm |
| Width: | 35.0 mm |
| Height: | 18.1 mm |
| Shape: | other |
| Color: | white |
| Suitable for traffic information board signalling: | no |
| Suitable for traffic lights: | no |
| Suitable for variable message signs: | no |
| Connection type: | other |
| Suitable for rail traffic: | no |
| Luminous flux: | 9600 lm |
| Suitable for constant current: | no |
| Suitable for general lighting: | yes |
| Suitable for constant voltage: | yes |
| Average Nominal service life: | 50000 h |
| External operating device required: | yes |
| Voltage type: | DC |
| Operating current: | 4000 mA |
| Operating voltage: | 24 V |
| Lamp voltage: | 24 V |
| Lamp power: | 96.00 W |
| Light color according to EN 12464-1: | warm white <,3300 K |
