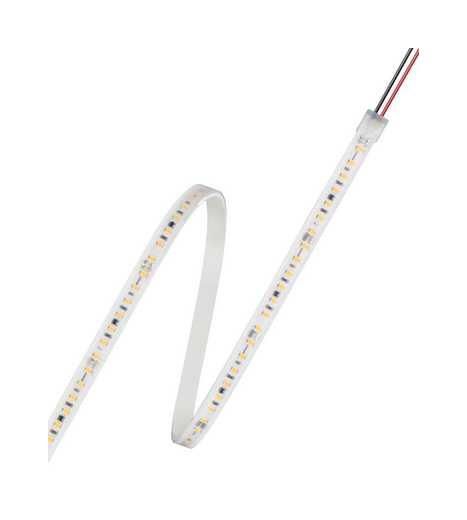

Product family advantages: Energy-saving, flexible LED strip with low power. Pre-wired LED light strip is quick and easy to install via plug-and-play. Good light output thanks to homogeneous LED spacing and high color consistency. Easy to mount on many smooth surfaces using self-adhesive tape on the back. Easy installation with optional rail system. Protected against water ingress in accordance with IP66. Multi-divisible LED strip with SLIMCONNECT system G2. Product family properties: Available with light color: Warm White, Cool White. Luminous flux: up to 1,200 lm/m. Protection class: IP66. High color consistency: 4 SDCM (threshold unit). Beam angle per module: 120°. Dimmable with suitable OPTOTRONIC© control gear. Areas of application: Wet or damp areas. General lighting. Catering. Display case lighting. Illuminated advertising. Architectural lighting. Wall integration. Suitable for outdoor use. Technical equipment: SLIMCONNECT System G2. Optional rail system.
| Property | Value |
| Lamp power per meter: | 10.0 W |
| With connection set: | yes |
| Number of lamps per meter: | 116 |
| Smallest bending radius: | 50 mm |
| Width: | 11.0 mm |
| Length: | 6000 mm |
| Beam angle: | 120 ° |
| Design: | Band |
| With end piece: | yes |
| Color temperature: | 6500 K |
| Light source: | LED not replaceable |
| Protection class (IP): | IP66 |
| Self-adhesive: | yes |
| Voltage type: | DC |
| Number of lamps per base: | 35 |
| Lamp power per base: | 3.0 W |
| Luminous flux per meter: | 1200 lm |
| Lamp voltage: | 24 V |
| Energy efficiency class of the built-in lamp: | G |
| Rated service life L70/B10 at 25 °C: | 50000 h |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Rated service life L80/B10 at 25 °C: | 33000 h |
| Rated service life L80/B50 at 25 °C: | 35000 h |
| Rated service life L90/B10 at 25 °C: | 18000 h |
| Rated service life L90/B50 at 25 °C: | 18000 h |
| Max. system power: | 60 W |
| Light color: | white |
| Height/depth: | 4.00 mm |
| With protective cover: | yes |
| Number of poles: | 2 |
