Wall and ceiling lights with a modern design in a square shape. Product features: Bright and functional LED outdoor lights. Housing made of die-cast aluminum. Available in two housing colors. Product advantages: Energy efficient thanks to LED technology. Simple and quick installation. Areas of application: Outdoor use (IP44). Illumination of facades. Terraces, balconies. Technical equipment: Complete assembly and connection accessories included
| Property | Value |
| Max. System power: | 13.50 W |
| Rated luminous flux according to IEC 62722-2-1: | 600 lm |
| Length: | 202.00 mm |
| Width: | 202.00 mm |
| Height/depth: | 45.00 mm |
| Protection class (IP): | IP44 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | aluminum |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | no |
| Voltage type: | AC |
| With motion detector: | no |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 40 °C |
| Connection type: | Screw terminal |
| With operating device: | yes |
| Cover material: | Opal plastic |
| Light distributor: | Diffuser lens/optics/panel |
| Without dimming function: | yes |
| Light emission: | direct |
| With light sensor: | no |
| Operating device: | EVG |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Covering of the luminaire with thermal insulation material possible: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Phase control dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine Wave Reduction dimming: | no |
| Touch and Dim dimming: | no |
| Zigbee dimming: | no |
| Push-button dimming: | no |
| Rated service life L70/B50 at 25 °C: | 30000 h |
| Luminaire luminous efficacy: | 46 lm/W |
| Power factor: | 0.5 |
| Wiring type: | Termination |
| Number of poles: | 3 |
Features
HAB

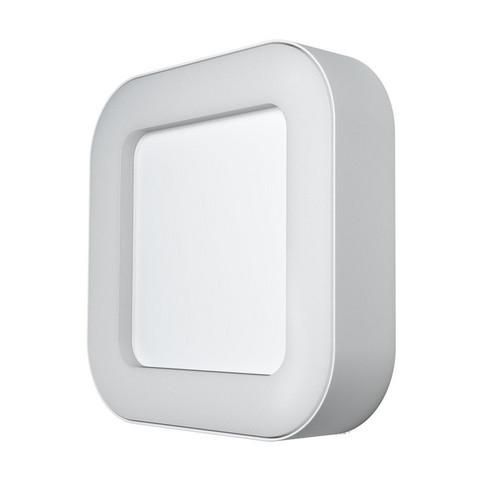

ENDURA STYLE SQUARE 13.5W WT
Manufacturer
HAN
4058075205277
GTIN
4058075205277
Covering the luminaire with thermal insulation material possible
No
Connection type
Screw terminal
Type of wiring
Diploma
Rated lifetime L70/B50 at 25 °C
30000 hours
Rated luminous flux according to IEC 62722-2-1
600lm
Rated ambient temperature according to IEC62722-2-1
-20 to 40 °C
Operating device
Electronic ballast
Suitable for computer workstations according to EN 12464-1
No
Width
202.00 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
No
Suitable for flush mounting
No
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Housing color
White
Height/Depth
45.00 mm
Power factor
0.5
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
46lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distributor
Diffuser lens/optics/panel
Length
202.00 mm
Max. system performance
13.50W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
Without dimming function
Yes
Number of poles
3
IP protection)
IP44
Protection class
I
Voltage type
Cover material
Plastic opal
Housing material
Aluminum
