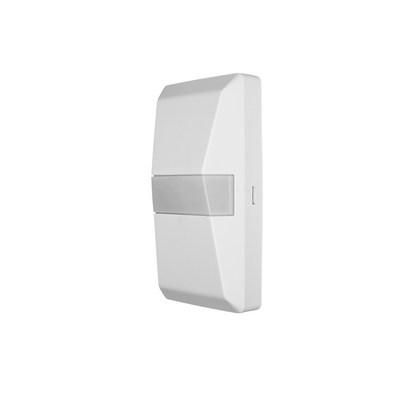

Outdoor wall sensor lights in a modern design with light output at the top and bottom. Product features: 4 setting options available (light permanently on for 6 hours, stand-by, switch on when there is movement or at dusk). Protection type: IP55. Shock resistance: IK05. Protection class: II. Product advantages: Decorative wall spotlight. Simple and quick installation. Areas of application: Outdoor areas. Illumination of facades. Arcades.
| Property | Value |
| Max. System power: | 10.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 1000 lm |
| Length: | 87.00 mm |
| Width: | 55.00 mm |
| Height/depth: | 180.00 mm |
| Protection class (IP): | IP55 |
| Protection class: | II |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | plastic |
| Color temperature: | 4000 K |
| Impact resistance: | IK05 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | no |
| Voltage type: | AC |
| With motion detector: | yes |
| Beam angle: | wide beam 41-80° |
| With light source: | yes |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 40 °C |
| Connection type: | Plug-in terminal |
| With operating device: | yes |
| Cover material: | opal plastic |
| Without dimming function: | yes |
| Light emission: | direct |
| With light sensor: | yes |
| Operating device: | EVG |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | matt |
| Covering of the luminaire with thermal insulation material possible: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Phase control dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine Wave Reduction dimming: | no |
| Touch and Dim dimming: | no |
| Zigbee dimming: | no |
| Push-button dimming: | no |
| Rated service life L70/B50 at 25 °C: | 30000 h |
| Luminaire luminous efficacy: | 91 lm/W |
| Power factor: | 0.85 |
| Wiring type: | Termination |
| Number of poles: | 3 |
Features
HAB
E PRO UPDOWN S 10W 840 IP55 WT
Manufacturer
HAN
4058075228948
GTIN
4058075228948
Covering the luminaire with thermal insulation material possible
No
Connection type
Plug-in terminal
Type of wiring
Diploma
Execution of the grid
Frosted
Beam angle
Wide beam 41-80°
Rated lifetime L70/B50 at 25 °C
30000 hours
Rated luminous flux according to IEC 62722-2-1
1000lm
Rated ambient temperature according to IEC62722-2-1
-20 to 40 °C
Operating device
Electronic ballast
Suitable for computer workstations according to EN 12464-1
No
Width
55.00 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
4000K
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
No
Suitable for flush mounting
No
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Housing color
White
Height/Depth
180.00 mm
Power factor
0.85
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
91lm/W
Light emission
Direct
Light color
White
Length
87.00 mm
Max. system performance
10.00 W
With operating device
Yes
With motion detector
Yes
With light source
Yes
With light sensor
Yes
With air slots
No
Nominal voltage
220 to 240 V
Without dimming function
Yes
Number of poles
3
Impact resistance
IK05
IP protection)
IP55
Protection class
II
Voltage type
AC
Cover material
Plastic opal
Housing material
Plastic
