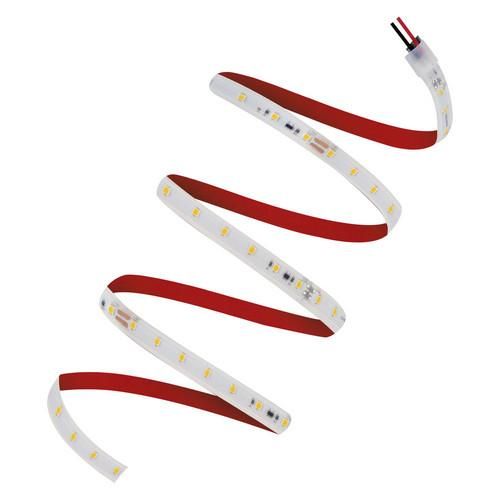

Powerful IP66 protected LED strips with 1000 lm/m for demanding applications. Product features: Flexible and divisible LED strip. Smallest divisible unit: 100 mm. Service life (L70/B50): up to 35,000 h at Tc max.: 75°C. Luminous flux: 1000 lm/m. Color rendering index Ra: > 80. Initial color consistency: 4 SDCM (threshold unit). Wide range of color temperatures: from warm white to cool daylight. Protection class: IP66. Dimmable with suitable drivers, see also www.ledvance.de/dim). UV resistance (according to IEC 60068-2-5). Salt mist resistance (according to IEC 60068-2-52). Product advantages: Great design freedom thanks to long, flexible LED light strips. Easy installation, tool-free connection. Easy installation on many smooth surfaces thanks to self-adhesive tape. Suitable for use in damp environments thanks to high protection class. Maximum flexibility thanks to a wide range of accessories. Easy connection thanks to cables integrated on both sides. Areas of application: General indoor lighting. General outdoor lighting. Industry. Offices, sales and conference rooms. Architectural lighting. Technical equipment: Connections, profiles and covers available for various installation options. End caps must be ordered separately.
| Property | Value |
| Lamp wattage per meter: | 8.1 W |
| With connection set: | no |
| Length of the individual sections: | 100 mm |
| Number of lamps per meter: | 70 |
| Smallest bending radius: | 25 mm |
| Width: | 10.00 mm |
| Length: | 5000.00 mm |
| Design: | Band |
| With end piece: | yes |
| Color temperature: | 6500 K |
| Light source: | LED not replaceable |
| Protection class (IP): | IP66 |
| Self-adhesive: | yes |
| Voltage type: | DC |
| Mounting type: | Structure |
| Number of lamps per foot: | 21 |
| Luminous flux per meter: | 950 lm |
| Lamp voltage: | 24 V |
| Rated service life L70/B50 at 25 °C: | 35000 h |
| Protection class (NEMA): | 4X |
| Max. System power: | 40.50 W |
| Color rendering index CRI: | 80-89 |
| Height/depth: | 4.50 mm |
| With protective cover: | yes |
| Type of wiring: | with through-wiring |
| Number of poles: | 2 |
| Conductor cross-section: | 0.5 mm² |
| Connection type: | Plug-in terminal |
