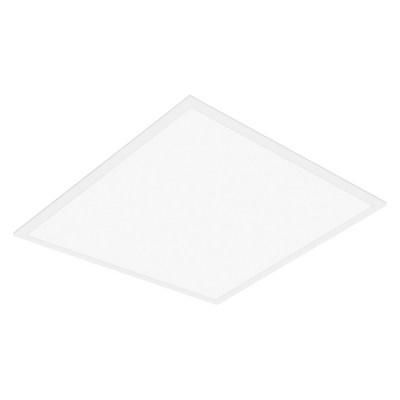

Square recessed luminaire, 600 x 600 mm. Product features: Lifespan (L70/B50): up to 50,000 hours (at 25 °C). Frame made of extruded aluminum. Polystyrene diffuser. Product advantages: Luminaire with good price-performance ratio. Low-flicker light thanks to special electronic ballast. Energy savings thanks to system light output of up to 100 lm/W. External driver for increased flexibility and easy installation. Versions with DALI electronic ballast available. Areas of application: Direct replacement for luminaires with fluorescent lamps. Office rooms, conference rooms. Reception areas, entrance areas, corridors, elevators. Suitable for ceiling recessed systems with a grid size of 600 x 600 mm. Technical equipment: Accessories available for various installation options. External ballast included. Safety clamps included.
| Property | Value |
| Max. System power: | 36.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 3600 lm |
| Length: | 595.0 mm |
| Width: | 595.0 mm |
| Height/depth: | 35.0 mm |
| Protection rating (IP): | IP40 |
| Protection class: | II |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | aluminum |
| Color temperature: | 4000 K |
| Impact resistance: | IK02 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Suitable for wall mounting: | yes |
| Energy efficiency class of the built-in lamp: | A++, A+, A (LED) |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | extremely wide beam>80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| With control gear: | yes |
| Rated service life L70/B10 at 25 °C: | 50000 h |
| Cover material: | Opal plastic |
| Light distributor: | Diffuser lens/optics/panel |
| Installation height/depth: | 50.0 mm |
| Without dimming function: | yes |
| Installation width: | 580.0 mm |
| Light emission: | direct |
| With light sensor: | no |
| Operating device: | EVG |
| Suitable for recessed mounting: | yes |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | yes |
| Installation length: | 580.0 mm |
| Design of the grid: | matt |
| Covering of the luminaire with thermal insulation material possible: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (integrated in the device): | no |
| LED nominal current at constant current: | 170 mA |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming Trailing edge phase control: | no |
| Dimming leading edge phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming dependent on operating device: | no |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Rated service life L80/B50 at 25 °C: | 50000 h |
| Rated service life L90/B10 at 25 °C: | 30000 h |
| Rated service life L90/B50 at 25 °C: | 50000 h |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire luminous efficacy: | 100 lm/W |
| Power factor: | 0.90 |
| Type of Wiring: | Termination |
| Number of poles: | 2 |
Features
Energy efficiency class of the permanently installed light source
A++, A+, A (LED)
Rated service life L90/B10 at 25 °C
30000 h
Rated service life L70/B10 at 25 °C
50000 h
Rated service life L80/B50 at 25 °C
50000 h
HAB
PL VAL 600 36W/4000K
Manufacturer
HAN
4058075392380
GTIN
4058075392380
Covering the luminaire with thermal insulation material possible
No
Type of wiring
Diploma
Execution of the grid
Frosted
Rated lifetime L70/B50 at 25 °C
50000 hours
Rated lifetime L80/B10 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
3600lm
Operating device
Electronic ballast
Suitable for computer workstations according to EN 12464-1
No
Width
595.0 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation width
580.0 mm
Installation height/depth
50.0 mm
Installation length
580.0 mm
Color temperature
Color rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for light strip configuration
No
Suitable for emergency lighting
Yes
Suitable for pendulum suspension
Yes
Suitable for wall mounting
Yes
Housing color
White
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
35.0 mm
LED nominal current at constant current
170mA
Power factor
0.90
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
100lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distributor
Diffuser lens/optics/panel
Length
595.0 mm
Max. system performance
36.00W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
Without dimming function
Yes
Number of poles
2
Impact resistance
IK02
IP protection)
IP40
Protection class
II
Voltage type
Cover material
Plastic opal
Housing material
Aluminum
