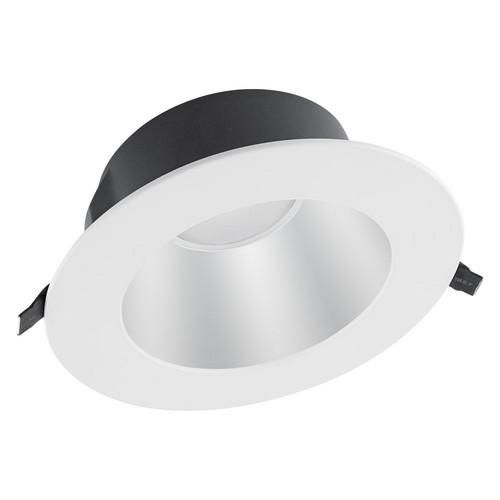

Low-glare downlights, suitable for computer workstations. Product features: Housing material: aluminum with high-gloss reflector. Protection class: IP54 (room side) / IP20 (rear). Connection box with plug-in terminal for tool-free connection. Through-wiring possible. Luminaire versions with IoT-capable DALI-2 driver or Zigbee 3.0 technology available. Product advantages: Good glare control (UGR < 19) and cut-off angle up to 30° for comfortable interior lighting. Simple and quick installation thanks to a connection box with 5-pin, tool-free connection terminal. Low-flicker light. Suitable for use in dusty and damp environments thanks to high protection class. 5-year guarantee. Areas of application: Suitable for office applications, especially computer workstations. Direct replacement for luminaires with compact fluorescent lamps. Corridors / hallways. Bathrooms, kitchens and covered outdoor areas. General lighting. Technical equipment: External ballast included.
| Property | Value |
| Max. System power: | 21.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 2520 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP54 |
| Outer diameter: | 220.00 mm |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 120 mm |
| With operating device: | yes |
| Suitable for recessed mounting: | yes |
| Length: | 220.00 mm |
| Width: | 220.00 mm |
| Height/depth: | 82.00 mm |
| With motion detector: | no |
| Color temperature: | 4000 K |
| Nominal voltage: | 220 to 240 V |
| Beam angle: | wide beam 41-80° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | high-gloss |
| Installation width: | 195.0 mm |
| Installation length: | 195.0 mm |
| Luminous flux: | 2520 lm |
| Cover material: | opal plastic |
| Covering of the luminaire with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for Pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | diffuser lens/optics/panel |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 70000 h |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 45 °C |
| Type of wiring: | suitable for through wiring |
| Power factor: | 0.90 |
| Number of poles: | 2 |
| Connection type: | Plug-in terminal |
| Luminous efficacy: | 120 lm/W |
| Suitable for computer workstations according to EN 12464-1: | yes |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety according to EN 62471: | RG1 |
| Colour consistency (McAdam ellipse): | SDCM5 |
Features
HAB
DL UGR19 DN195 PFM 21W/840 WT IP54
Manufacturer
HAN
4058075459274
GTIN
4058075459274
Covering the luminaire with thermal insulation material possible
No
Connection type
Plug-in terminal
Type of wiring
Suitable for through wiring
Beam angle
Wide beam 41-80°
Outer diameter
220.00 mm
Rated lifetime L70/B50 at 25 °C
70000 hours
Rated luminous flux according to IEC 62722-2-1
2520lm
Rated ambient temperature according to IEC62722-2-1
-20 to 45 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
Yes
Width
220.00 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation width
195.0 mm
Installation height/depth
120 mm
Installation length
195.0 mm
Color consistency (McAdam ellipse)
SDCM5
Color temperature
Color rendering index CRI
80-89
Version
Without
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
82.00 mm
Power factor
0.90
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
120lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
2520lm
Light distributor
Diffuser lens/optics/panel
Light distribution
Symmetrical
Length
220.00 mm
Max. system performance
21.00 W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
Surface
Powder coated
Brushed surface
No
Without dimming function
Yes
Photobiological safety according to EN 62471
RG1
Number of poles
2
Reflector
High gloss
Impact resistance
IK03
IP protection)
IP54
Protection class
II
Voltage type
Adjustability
Not adjustable
Cover material
Plastic opal
Housing material
Aluminum
