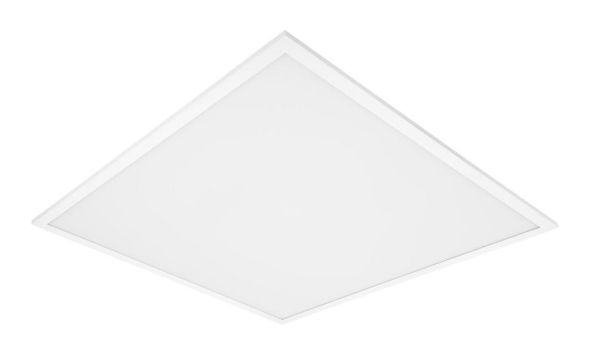

Square insert luminaire, tool-free installation, for 600 x 600 mm ceiling systems and DALI-2 IoT technology. Product features: IoT-capable luminaire with DALI-2 technology. Frame made of extruded aluminum. Polystyrene diffuser. 3-pin connection terminal, cable cross-section up to 3 x 2.5 mm² (25 W and 30 W versions). 5-pin connection terminal, cable cross-section up to 5 x 2.5 mm² (36 W versions and DALI types). Service life (L80/B10): up to 60,000 h (at 25 °C). Product advantages: Suitable luminaire for VIVARES and other DALI-2 light management systems. Tool-free electrical connection thanks to push-button connection terminal. Through-wiring possible with included connection box. Energy savings thanks to high system light output: up to 120 lm/W. Comfortable light and high color consistency. External driver for increased flexibility and easy installation. Low-flicker light thanks to special electronic ballast. Emergency lighting possible with LEDVANCE Emergency Conversion Box. 5-year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Office rooms, conference rooms. Reception areas, entrance areas, corridors, elevators. Suitable for ceiling recessed systems with a grid size of 600 x 600 mm. Technical equipment: Accessories available for various installation options. Connection box with 3-pin or 5-pin connection terminal included. Safety cable for luminaires included. Safety clamps included. External ballast included
Property | Value |
System power: | 30.00 W |
Luminous flux: | 3600 lm |
Length: | 595.00 mm |
Width: | 595.00 mm |
Height/Depth: | 80.0 mm |
Protection class (IP): | IP40 |
Protection class: | II |
Nominal voltage: | 220 to 240 V |
Housing colour: | white |
Housing material: | aluminium |
Colour temperature: | 4000 K |
Impact resistance: | IK02 |
Colour rendering index CRI: | 80-89 |
Suitable for ceiling mounting: | yes |
Voltage type: | AC/DC |
With motion detector: | no |
Beam angle: | free beam/diffuse |
With Light source: | yes |
Light source: | LED not replaceable |
Temperature: | -10 to 50 °C |
Socket: | other |
Connection type: | plug-in terminal |
With operating device: | yes |
Light distributor: | diffuser lens/optics/panel |
Installation height/depth: | 80.0 mm |
Without dimming function: | no |
Installation width: | 575 mm |
Light emission: | direct |
With light sensor: | no |
Operating device: | EVG |
Suitable for recessed mounting: | yes |
Light color: | white |
Suitable for computer workstations in accordance with EN 12464-1: | no |
Suitable for light strip configuration: | no |
Suitable for pendant suspension: | yes |
Suitable for surface mounting: | yes |
Suitable for Emergency light: | yes |
Installation length: | 575 mm |
Grid design: | matt |
Covering of the light with thermal insulation material possible: | no |
Dimming DMX: | no |
Dimming DSI: | no |
With air slots: | no |
Dimming LineSwitch: | no |
Dimming Potentiometer (integrated in the device): | no |
Dimming 0-10 V: | no |
Dimming 1-10 V: | no |
Dimming manufacturer-specific: | no |
Dimming DALI: | yes |
Dimming mains voltage modulation: | no |
Dimming trailing edge: | no |
Dimming leading edge: | no |
Dimming programmable: | no |
Dimming RF: | no |
Dimming Sine Wave Reduction: | no |
Dimming Touch and Dim: | no |
Dimming Zigbee: | no |
Dimming with push button: | no |
Rated service life: | 100,000 h |
Luminaire luminous efficacy: | 120 lm/W |
Type of wiring: | suitable for through-wiring |
Number of poles: | 5 |
Surface protection housing: | powder-coated |
Nominal current: | 135 mA |
Replaceable operating device: | yes |
Dimming DALI-2: | yes |
Color consistency (McAdam ellipse): | SDCM3 |
Max. number of luminaires circuit breaker B16: | 20 |
Max. Number of lights circuit breaker C16: | 33 |
Integrated emergency power supply: | no |
Photobiological safety according to EN 62471: | RG0 |
Adjustable color temperature: | no |
Adjustable luminous flux: | no |
Adjustable beam angle: | no |
Operation via Bluetooth: | no |
Compatible with Apple HomeKit: | no |
Compatible with Google Assistant: | no |
Compatible with Amazon Alexa: | no |
IFTTT support available: | yes |
