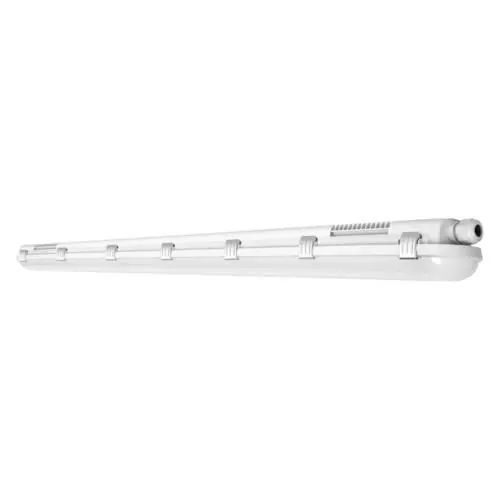

Damp-proof luminaires, classic shape. Product features: High luminous efficacy: up to 139 lm/W. Beam angle: 110°. Product advantages: Low flicker light 10%. Uniform light distribution. Up to 60% energy savings (compared to luminaires that use fluorescent lamps). Easy installation, tool-free connection. 5-year guarantee. Areas of application: Industrial and storage areas. Car parks and underpasses. Garages. Workshops, production lines. Technical equipment: Stainless steel brackets and security screws included. Mounting accessories included (suspension kit, anti-theft kit).
| Property | Value |
| Max. System power: | 58.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 8000 lm |
| Length: | 1500.00 mm |
| Width: | 82.00 mm |
| Height/depth: | 68.00 mm |
| Protection class (IP): | IP65 |
| Protection class: | I |
| Nominal voltage: | 220 to 240 V |
| Housing color: | gray |
| Material of Housing: | Plastic |
| Color temperature: | 6500 K |
| Impact resistance: | IK08 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Voltage type: | AC |
| With motion detector: | no |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -25 to 40 °C |
| Connection type: | Plug-in terminal |
| With operating device: | yes |
| Cover material: | Opal plastic |
| Light distributor: | Diffuser lens/optics/panel |
| Without dimming function: | yes |
| Light emission: | direct |
| With light sensor: | no |
| Operating device: | EVG |
| Suitable for built-in installation: | no |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | other |
| Covering of the luminaire with thermal insulation material possible: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Rated service life L70/B50 at 25 °C: | 70000 h |
| Glow wire test according to IEC 60695-2-11: | 850 °C - 30 s |
| Luminaire luminous efficacy: | 135 lm/W |
| Power factor: | 0.90 |
| Wiring type: | suitable for through wiring |
| Number of poles: | 3 |
Features
HAB
DP 1500 58W 865 IP65 GY
Manufacturer
HAN
4058075541269
GTIN
4058075541269
Covering the luminaire with thermal insulation material possible
No
Connection type
Plug-in terminal
Type of wiring
Suitable for through wiring
Execution of the grid
Other
Rated lifetime L70/B50 at 25 °C
70000 hours
Rated luminous flux according to IEC 62722-2-1
8000lm
Rated ambient temperature according to IEC62722-2-1
-25 to 40 °C
Operating device
Electronic ballast
Suitable for computer workstations according to EN 12464-1
No
Width
82.00 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
6500K
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
Yes
Housing color
Gray
Glow wire test according to IEC 60695-2-11
850 °C - 30 s
Height/Depth
68.00 mm
Power factor
0.90
Luminaire luminous efficacy
135lm/W
Lamps
LED not replaceable
Light emission
Direct
Light distributor
Diffuser lens/optics/panel
Length
1500.00 mm
Max. system performance
58.00W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
220 to 240 V
Without dimming function
Yes
Number of poles
3
Impact resistance
IK08
IP protection)
IP65
Protection class
I
Voltage type
AC
Cover material
Plastic opal
Housing material
Plastic
