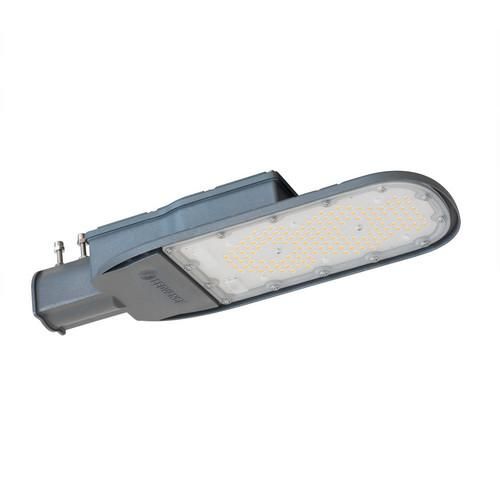

For applications with a luminous flux requirement of up to 20250 lm. Product features: Asymmetrical light distribution for a wide range of applications. Housing made of robust die-cast aluminum. Pole-mounted installation with a 48.60 mm spigot dimension. Overvoltage protection: 10 kV (L/N-PE). Integrated ballast with a wide input voltage range, suitable for 100 - 277 VAC. Pre-installed, flexible cable (H05RN-F) with a length of 0.5 m, 3 x 1.0 mm crimped. Product advantages: Functional and minimalist design. Low maintenance and operating costs thanks to the long LED service life. 5-year guarantee. Areas of application: Street lighting. Streets. Parking lots. Area lighting.
| Property | Value |
| Length: | 552.00 mm |
| Width: | 216.00 mm |
| Height/Depth: | 91.00 mm |
| Suitable for number of bulbs: | 90 |
| Max. System power: | 90.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 11250 lm |
| Color temperature: | 2700 K |
| Suitable for spigot size: | 60 mm |
| Nominal voltage: | 100 to 240 V |
| Housing color: | gray |
| Operating device: | EVG |
| With light source: | yes |
| Light source: | LED not replaceable |
| Socket: | without |
| Protection class (IP): | IP66 |
| Protection class: | I |
| Impact resistance: | IK08 |
| Mounting type: | Attachment |
| Color rendering index CRI: | 80-89 |
| Voltage type: | AC |
| With operating device: | yes |
| Adjustable optics: | no |
| Cover material: | Opal plastic |
| Housing material: | Aluminum |
| Remote control: | without |
| Cable length: | 0.5 m |
| Constant luminous flux control: | no |
| Light color: | white |
| With connection cable: | yes |
| With radio control: | no |
| With program-controlled light control: | no |
| Surface: | powder-coated |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Light distributor: | Focus lens |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | -30 to 50 °C |
| Luminaire luminous efficacy: | 125 lm/W |
| Power factor: | 0.95 |
| Type of wiring: | Termination |
| Number of poles: | 3 |
| Connection type: | other |
Features
HAB
ECOAREASPD 90W 827 IP66 GY 4X1
Manufacturer
HAN
4058075557710
GTIN
4058075557710
Connection type
Other
Type of wiring
Diploma
Rated lifetime L70/B50 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
11250lm
Rated ambient temperature according to IEC62722-2-1
-30 to 50 °C
Operating device
Electronic ballast
Width
216.00 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
Color rendering index CRI
80-89
Version
Without
Remote control
Without
Suitable for number of lamps
90
Suitable for braid size
60 mm
Housing color
Gray
Height/Depth
91.00 mm
Cable length
0.5m
Constant luminous flux control
No
Power factor
0.95
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
125lm/W
Lamps
LED not replaceable
Light color
White
Light distributor
Focus lens
Length
552.00 mm
Max. system performance
90.00W
With connection cable
Yes
With operating device
Yes
With radio control
No
With light source
Yes
With program-controlled lighting control
No
Mounting type
Essay
Nominal voltage
Surface
Powder coated
Without dimming function
Yes
Number of poles
3
Impact resistance
IK08
IP protection)
IP66
Protection class
I
Voltage type
Cover material
Plastic opal
Housing material
Aluminum
