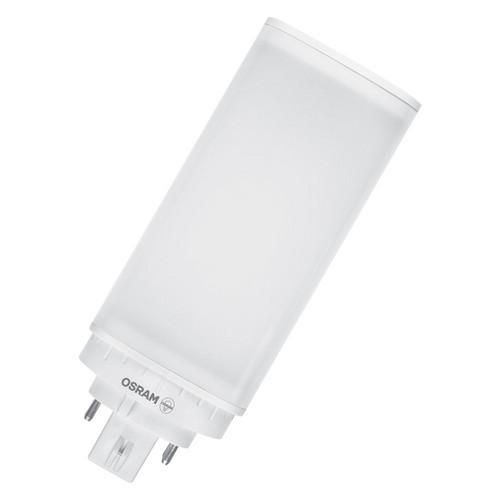

LED replacement for KLLni with 4-pin GX24q plug-in base for operation on electronic ballast or mains voltage. Product features: LED replacement for conventional compact fluorescent lamps in electronic ballast lights or on mains voltage. Single-sided 4-pin GX24q plug-in base. Rotatable base around its longitudinal axis (90°). Protection class: IP20. Lifespan: up to 30,000 hours. Mercury-free lamps. Product advantages: Simple, quick and safe lamp replacement. Low energy consumption. Can be operated directly on 230 V mains voltage. Areas of application: Supermarkets and department stores. Hallways and corridors. Hotels, restaurants. Outdoor applications only in suitable luminaires.
| Property | Value |
| Lamp wattage: | 7 W |
| Color temperature: | 3000 K |
| Socket: | other |
| Lamp shape: | Tube, single-ended |
| Nominal voltage: | 220 V |
| Length: | 120.00 mm |
| Color rendering index CRI: | 80-89 |
| Average nominal service life: | 30000 h |
| Diameter: | 45.00 mm |
| Weighted energy consumption in 1,000 hours: | 7.00 kWh |
| Voltage type: | AC |
| Color: | white |
| Light color according to EN 12464-1: | warm white <3300 K |
| Protection class (IP): | IP20 |
| With remote control: | no |
| Glass/cover design: | frosted |
| Luminous flux: | 720 lm |
| Nominal current: | 32 mA |
| Power factor: | 0.90 |
| Lamp luminous efficacy: | 102 lm/W |
| Filament lamp: | no |
| Housing color: | white |
| Color consistency (McAdam ellipse): | SDCM6 |
| Energy efficiency index (EEI): | 0.12 |
| Min. Number of switching operations: | 200000 |
| Remote control possible: | no |
| Photobiological safety according to EN 62471: | RG0 |
Features
Energy efficiency index (EEI)
0.12
HAB
DULUXTE18LED 7W/830 230VHFGX24Q10X1
Manufacturer
HAN
4058075559349
GTIN
4058075559349
Glass/cover design
Matte
Diameter
45.00 mm
Color
White
Color consistency (McAdam ellipse)
SDCM6
Color temperature
Color rendering index CRI
80-89
Remote control possible
No
Filament lamp
No
Housing color
White
Weighted energy consumption in 1,000 hours
7.00 kWh
Lamp shape
Lamp power
Lamp luminous efficacy
102lm/W
Power factor
0.90
Luminous flux
720lm
Length
120.00 mm
Min. number of switching operations
200000
With remote
No
Average nominal life
30000 hours
Nominal voltage
Rated current
32mA
Photobiological safety according to EN 62471
RG0
IP protection)
IP20
Base
Other
Voltage type
