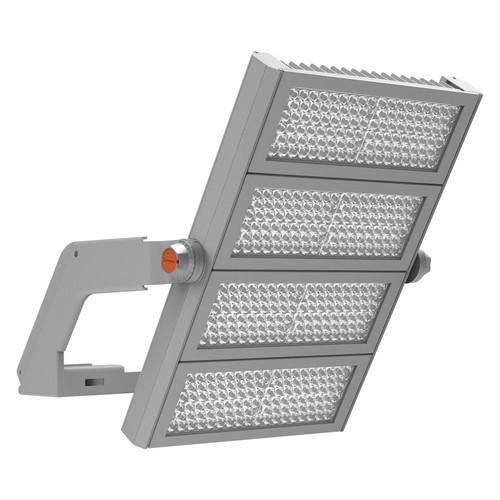

High-performance spotlight for large-area and sports facility lighting, up to 164 klm. Product features: Modular high-performance spotlight with up to 135 lm/W. Joint or separate installation with Floodlight Max power supply at a distance of up to 40 m. Available with 10°, 30° and 60° symmetrical light distribution, as well as 50°x110° asymmetrical beam characteristics. Mounting bracket with rotation range of up to 180°. Cover plate made of highly transparent, tempered glass. Product advantages: Extremely bright, robust and durable. Up to 45% energy savings compared to lights that use conventional discharge lamps. Easy dimming to 50% using wiring. No light leakage in the upper half space (ULOR 0%) at 0° inclination. Optimized product logistics, light heads and power supplies to be ordered separately in separate packaging. Low-flicker light. 5-year guarantee. Areas of application: Outdoor use (IP66). Illumination of large areas. Sports facilities. Construction sites. Direct replacement for luminaires that use HID lamps. Technical equipment: Power supply not included with the luminaire head. Operation only with official 1200 W power supply GTIN (EAN) 4058075580749. Aiming aid in preparation. Cover to limit the front beam angle in preparation.
| Property | Value |
| Max. System power: | 1200.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 164000 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP66 |
| Socket: | without |
| Light source: | LED not replaceable |
| With light source: | yes |
| With control gear: | no |
| Suitable for recessed mounting: | no |
| Length: | 841.00 mm |
| Width: | 591.00 mm |
| Height/Depth: | 282.00 mm |
| With motion detector: | no |
| Color temperature: | 5700 K |
| Nominal voltage: | 1 to 0 V |
| Color rendering index CRI: | 70-79 |
| Suitable for ceiling mounting: | no |
| Light distribution: | asymmetric |
| Impact resistance: | IK08 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | matt |
| Luminous flux: | 164000 lm |
| Covering of the luminaire with thermal insulation material possible: | no |
| Voltage type: | DC |
| Suitable for track mounting: | no |
| Adjustability: | pivotable |
| Suitable for clamp mounting: | no |
| Suitable for Pendulum suspension: | no |
| Suitable for platform/floor mounting: | yes |
| Suitable for truss mounting: | yes |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | Reflector |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 100000 h |
| Rated ambient temperature according to IEC62722-2-1: | -30 to 50 °C |
| Type of wiring: | Termination |
| Number of poles: | 3 |
| Luminaire luminous efficacy: | 137 lm/W |
| Suitable for computer workstations according to EN 12464-1: | no |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety according to EN 62471: | RG2 |
