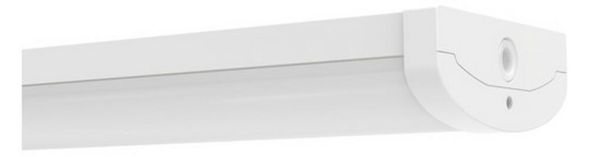

Robust IP44 luminaires with direct light emission and integrated driver for surface applications, up to 137 lm/W. Product features: Surface-mounted luminaire with direct light emission. Protection class: IP44. Shock resistance: IK08. Available in 3 different lengths: 600 mm, 1200 mm and 1500 mm. High luminous efficacy: up to 137 lm/W. Through-wiring cable already installed. Service life (L80/B10): 70,000 h (at 25 °C). White painted steel housing (similar to RAL: 9003). Diffuser material: UV-stable polycarbonate. End caps (made of polycarbonate) screwed to the housing. Product benefits: Low maintenance and low running costs. Protection against cover falling off, theft and vandalism thanks to security screws. Cable entry on the back of the luminaire and on the end caps for easy electrical connection. Simple and quick installation. Low-flicker light thanks to special electronic ballast. 5-year guarantee. Areas of application: Efficient replacement for traditional T8 and T5 light strips. Public buildings. General lighting. Libraries, schools. Technical equipment: Equipped with through-wiring cables and plugs. Including tool-free cable strain relief.
| Property | Value |
| BEG funding program: | Yes |
| Rated luminous flux according to IEC 62722-2-1: | 2430 lm |
| Color temperature: | 4000 K |
| Protection class (IP): | IP44 |
| Impact resistance: | IK08 |
| Protection class: | I |
| Rated ambient temperature according to IEC62722-2-1: | -20 - 40 °C |
| Length: | 608.00 mm |
| Width: | 166.00 mm |
| Height / Depth: | 63.00 mm |
| Voltage type: | AC |
| Nominal voltage: | 220 - 240 V |
| Max. System power: | 18.00 W |
| Luminaire luminous efficacy: | 135 lm/W |
| With control gear: | yes |
| Control gear: | EVG |
| Connection type: | Plug terminal |
| Number of poles: | 3 |
| Type of wiring: | with through-wiring |
| With light source: | yes |
| Light source: | LED not replaceable |
| Light emission: | direct |
| Light distributor: | diffuser lens/optics/panel |
| Housing colour: | white |
| Suitable for surface mounting: | yes |
| Suitable for ceiling mounting: | yes |
| Suitable for pendant suspension: | yes |
| Photobiological safety in accordance with EN 62471: | RG0 |
| Weight: | 1.4 |
| Weight unit: | KG |
| Version of the Grid: | matt |
| Nominal current: | 90,000 mA |
| Rated service life L70/B50 at 25 °C: | 70,000 h |
| Replaceable operating device: | yes |
| Max. number of luminaires circuit breaker C16: | 49 |
| Max. Number of lights circuit breaker B16: | 49 |
| Surface protection housing: | powder-coated |
| Socket: | other |
| Without dimming function: | yes |
| Short description: | LINEAR SURFACE IP44 600 P 18W 840 WT |
