Luminaire inserts with wide light distribution and opal lens, up to 167 lm/W. Product features: Wide beam angle: 90° with opal lens. Clickable solution with push buttons. Light output: up to 167 lm/W. Fixed luminaire taps. Luminaire versions available with on/off or IoT-capable DALI-2 driver. Sheet steel housing. Lens material: PMMA. Protection class: IP40. Product advantages: LEDs with opal cover for homogeneous lighting and minimized glare. Easy installation, tool-free connection. Energy-saving and cost-effective. Flexible application thanks to a wide range of different lumen packages and luminaire opening angles. 5-year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Industrial halls, high-bay warehouses, hardware stores. Discounters, supermarkets. Technical equipment: Mounting rail with permanently integrated 5- and 8-pin cable harness.
| Property | Value |
| BEG funding program: | Yes |
| Rated luminous flux according to IEC 62722-2-1: | 8300 lm |
| Color temperature: | 4000 K |
| Color rendering index CRI: | 80-89 |
| Color consistency (McAdam ellipse): | SDCM3 |
| Protection rating (IP): | IP40 |
| Protection class: | I |
| Length: | 1500.00 mm |
| Width: | 77.70 mm |
| Height/Depth: | 39.40 mm |
| Voltage type: | AC/DC |
| Rated voltage: | 220 - 240 V |
| Max. System power: | 50.00 W |
| Luminaire luminous efficacy: | 167 lm/W |
| Power factor: | 0.95 |
| With control gear: | yes |
| Control gear: | EVG |
| DALI dimming: | yes |
| Connection type: | other |
| Number of poles: | 3 |
| Type of wiring: | suitable for through-wiring |
| With light source: | yes |
| Light source: | LED not replaceable |
| Light emission: | direct |
| Light distribution: | symmetrical |
| Light distributor: | Focus lens |
| Housing color: | white |
| Weight: | 1.75 |
| Weight unit: | KG |
| Nominal current: | 230,000 mA |
| Rated service life L70/B50 at 25 °C: | 100,000 h |
| Rated service life L80/B10 at 25 °C: | 76,000 h |
| Dimming 1-10 V: | yes |
| Replaceable operating device: | yes |
| Reflector: | without |
| Socket: | without |

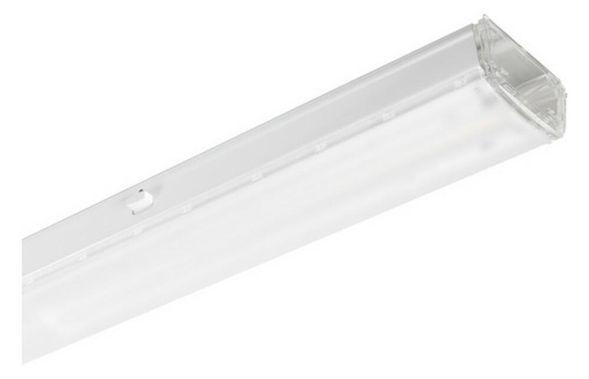

| Short description: | TruSys® FLEX WIDE OPAL 50W 840 W OP WT DALI |
