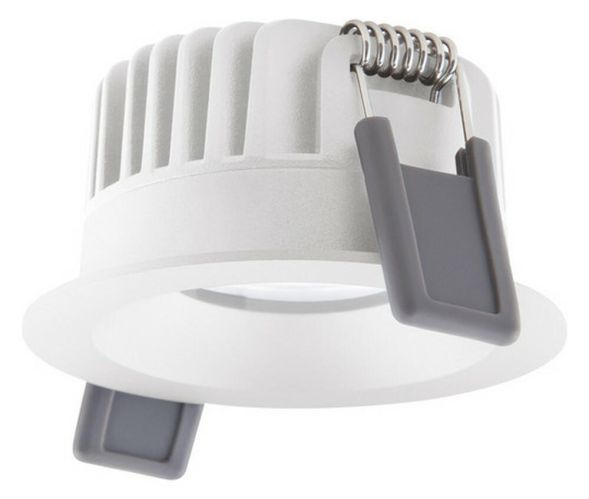

Recessed spotlight for indoor use, fixed. Product features: Color rendering index Ra: 90. Protection class: IP44 (room side). Beam angle: 36°. Housing made of die-cast aluminum. Springs with soft silicone coating. Dimmable (on many commercially available dimmers, see also www.ledvance.de/dim). Through-wiring possible. Product advantages: Energy savings of up to 90% compared to halogen lamp spotlights. Powerselect: Adjustment of brightness via dip switch on the driver. Easy replacement of the external driver thanks to plug with bayonet lock. Easy installation and electrical connection thanks to tool-free connection terminals. SCALE design - great appearance, high-quality materials and small size fit into any environment. 5-year guarantee. Areas of application: Direct replacement for recessed spotlights with halogen lamps. General lighting. Hotel rooms and corridors. Bars, restaurants. Accent lighting. Galleries, museums. Living rooms. Technical features: External ballast with dip switches for adjusting the power during installation included. Renovation rings are available as an accessory. Selected DALI 2.0 driver is available as an accessory.
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 720 lm |
| Color temperature: | 4000 K |
| Color rendering index CRI: | 90-100 |
| Color consistency (McAdam ellipse): | SDCM3 |
| Protection class (IP): | IP44 |
| Impact resistance: | IK05 |
| Protection class: | II |
| Rated ambient temperature according to IEC62722-2-1: | -20 - 40 °C |
| Length: | 81 mm |
| Width: | 81 mm |
| Height/Depth: | 42 mm |
| Voltage type: | AC |
| Nominal voltage: | 220 V |
| Max. System power: | 8 W |
| Luminaire luminous efficacy: | 90 lm/W |
| Power factor: | 0.90 |
| With control gear: | yes |
| Control gear: | LED control gear current-controlled |
| Number of poles: | 2 |
| Type of wiring: | suitable for through-wiring |
| With light source: | yes |
| Light source: | LED not replaceable |
| Light emission: | direct |
| Light distribution: | symmetrical |
| Light distributor: | Focus lens |
| Housing colour: | white |
| Housing material: | aluminum |
| Suitable for surface mounting: | yes |
| Suitable for ceiling mounting: | yes |
| Photobiological safety in accordance with EN 62471: | RG1 |
| Weight: | 0.24 |
| Weight unit: | KG |
| Outer diameter: | 81 mm |
| Suitable for recessed mounting: | yes |
| Luminous flux: | 720 lm |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Dimming trailing edge: | yes |
| Dimming leading edge: | yes |
| Replaceable Operating device: | yes |
| Installation diameter: | 68 mm |
| Installation height/depth: | 50.0 mm |
| Reflector: | without |
| Socket: | without |
| Surface: | powder-coated |
| Adjustability: | not adjustable |
| Max. number of lights circuit breaker C16: | 336 |
| Max. Number of lights circuit breaker B16: | 336 |
| Short description: | SPOT FIX 8W 940 PS DIM IP44 WT |
