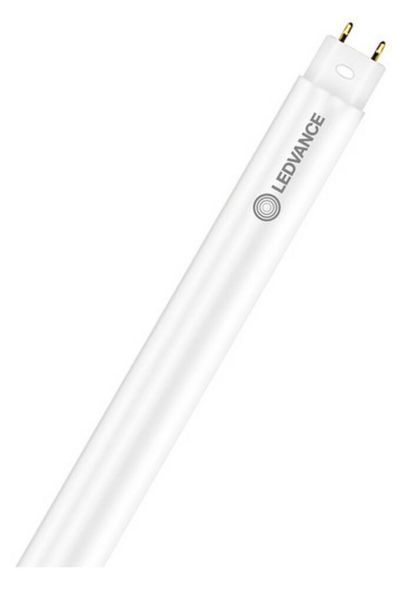

LED tubes for electromagnetic ballasts work with the Connected Sensors. Product features: Network protocol: ZigBee 3.0 (2.4 GHz Mesh Network). LED TUBE T8 EM Connected can only be operated with the LEDVANCE Connected Sensor. Product advantages: No sagging thanks to glass technology. Shatter protection thanks to special PET coating. Short payback period thanks to low energy consumption and low maintenance costs. Areas of application: General lighting in ambient temperatures of -20.+50°C. Parking garages, storage areas, production areas. Industry. Offices.
| Property | Value |
| Color temperature: | 4000 K |
| Color rendering index CRI: | 80-89 |
| Color consistency (McAdam ellipse): | SDCM5 |
| Protection class (IP): | IP20 |
| Length: | 1213 mm |
| Voltage type: | AC |
| Nominal voltage: | 220 V |
| Power factor: | 0.90 |
| Photobiological safety according to EN 62471: | RG0 |
| Weight: | 0.24 |
| Weight unit: | KG |
| Color: | white |
| Socket: | G13 |
| Diameter: | 28 mm |
| Lamp luminous efficacy: | 150 lm/W |
| Lamp shape: | Tube, double-ended |
| Light color according to EN 12464-1: | neutral white 3300 to 5300 K |
| Version Glass/cover: | frosted |
| Average nominal service life: | 50,000 h |
| Nominal current: | 73 mA |
| Weighted energy consumption in 1,000 hours: | 16 kWh |
| Lamp wattage: | 16 W |
| Luminous flux: | 2400 lm |
| Lamp designation: | other |
| Min. Number of switching operations: | 200000 |
| Beam angle: | 160 ° |
| Rated luminous flux according to IEC 62612: | 2400 lm |
| Energy efficiency index (EEI): | 0.09 |
| Energy spectrum: | A - G |
| Energy efficiency class according to EU Directive 2019/2015: | D |
| Short description: | LED TUBE T8 EM CONNECTED P 1200 mm 16W 840 |
Features
Energy efficiency index (EEI)
0.09
HAB
LEDTUBE T8 EM CON P 1200 16W 840
Manufacturer
HAN
4058075823976
GTIN
4058075823976
Glass/cover design
Matte
Beam angle
160°
Rated luminous flux according to IEC 62612
2400lm
Diameter
28 mm
Energy spectrum
A - G
Energy efficiency class according to EU Directive 2019/2015
D
Color
White
Color consistency (McAdam ellipse)
SDCM5
Color temperature
Color rendering index CRI
80-89
Weight
0,24
Weighted energy consumption in 1,000 hours
16 kWh
Weight unit
kg
Short description
LED TUBE T8 EM CONNECTED P 1200 mm 16W 840
Lamp designation
Other
Lamp shape
Lamp power
Lamp luminous efficacy
150lm/W
Power factor
0.90
Light colour according to EN 12464-1
Luminous flux
2400lm
Length
1213 mm
Min. number of switching operations
200000
Average nominal life
50000 hours
Nominal voltage
Rated current
73mA
Photobiological safety according to EN 62471
RG0
IP protection)
IP20
Base
G13
Voltage type
