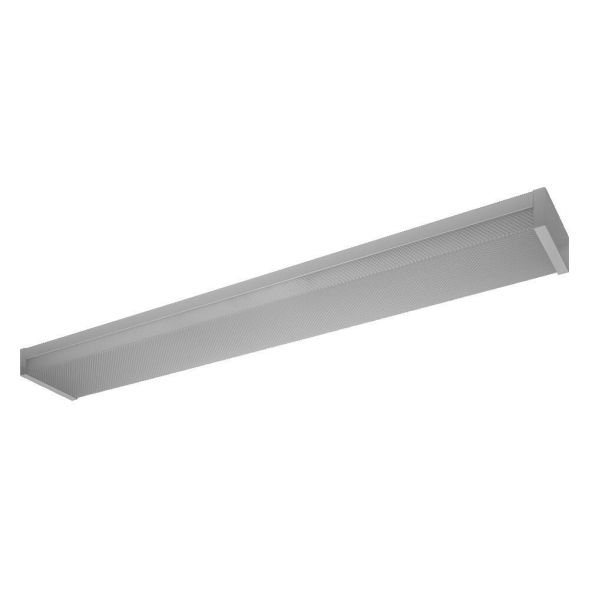

Office ceiling light with prismatic diffuser. Product features: Available lengths: 0.6 m, 1.2 m. Lifespan: up to 50,000 hours. Product benefits: Attractive and functional design for office applications. Prismatic diffuser to reduce glare and scatter the light. Dimmable using the included remote control. Areas of application: Office lighting. Technical equipment: Complete installation and connection accessories included. Remote control included.
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 4600 lm |
| Color temperature: | 4000 K |
| Color rendering index CRI: | 80-89 |
| Color consistency (McAdam ellipse): | SDCM6 |
| Protection class (IP): | IP20 |
| Impact resistance: | IK02 |
| Protection class: | I |
| Rated ambient temperature according to IEC62722-2-1: | -20 - 40 °C |
| Length: | 1200.00 mm |
| Width: | 163.10 mm |
| Height / Depth: | 71.60 mm |
| Voltage type: | AC |
| Nominal voltage: | 220 - 240 V |
| Max. System power: | 40.00 W |
| Luminaire luminous efficacy: | 115 lm/W |
| Power factor: | 0.90 |
| With control gear: | yes |
| Control gear: | EVG |
| Connection type: | Plug terminal |
| Number of poles: | 3 |
| Type of wiring: | Terminal |
| With light source: | yes |
| Light emission: | direct |
| Housing color: | white |
| Material of Housing: | Steel |
| Suitable for surface mounting: | yes |
| Suitable for ceiling mounting: | yes |
| Photobiological safety according to EN 62471: | RG0 |
| Weight: | 1.95 |
| Weight unit: | KG |
| Nominal current: | 179,000 mA |
| Light color: | white |
| IFTTT support available: | yes |
| Rated service life L70/B50 at 25 °C: | 50,000 h |
| Dimming with push button: | yes |
| Max. number of lights circuit breaker B16: | 65 |
| Short description: | Office Line Double Wrap 1.2M 40W 840 DIM RC |
| Wall mounting: | yes |
| Energy efficiency class of the light source according to EU Directive 2019/2015: | D |
Features
Wall mounting
Yes
HAB
OFFICE LINE WRAP 1.2M 40W 840DIM RC
Manufacturer
HAN
4058075830936
GTIN
4058075830936
Connection type
Plug-in terminal
Type of wiring
Diploma
Rated lifetime L70/B50 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
4600lm
Rated ambient temperature according to IEC62722-2-1
-20 - 40 °C
Operating device
Electronic ballast
Width
163.10 mm
Dimming with push button
Yes
Energy efficiency class of the light source according to EU Directive 2019/2015
D
Color consistency (McAdam ellipse)
SDCM6
Color temperature
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Housing color
White
Weight
1,95
Weight unit
kg
Height/Depth
71.60 mm
IFTTT support available
Yes
Short description
Office Line Double Wrap 1.2M 40W 840 DIM RC
Power factor
0.90
Luminaire luminous efficacy
115lm/W
Light emission
Direct
Light color
White
Length
1200.00 mm
Max. number of luminaires Circuit breaker B16
65
Max. system performance
40.00W
With operating device
Yes
With light source
Yes
Nominal voltage
Rated current
179,000mA
Photobiological safety according to EN 62471
RG0
Number of poles
3
Impact resistance
IK02
IP protection)
IP20
Protection class
I
Voltage type
Housing material
Steel
