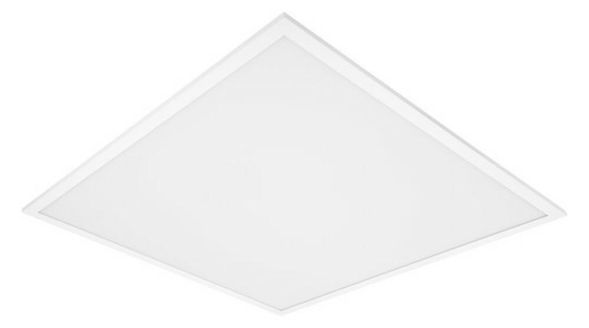

Square recessed panel luminaire, for 625 x 625 mm ceiling systems and DALI-2 IoT technology. Product features: IoT-enabled luminaire with DALI-2 technology. Suitable for use with central battery systems in accordance with EN60598-2-22. Push-DIM function for switching and dimming directly on the wall switch. Frame made of extruded aluminum. Polystyrene diffuser. 5-pin connection terminal, cable cross-section up to 5 x 2.5 mm. Service life (L80/B10): 70,000 h (at 25 °C). Product advantages: Suitable luminaire for VIVARES and other DALI-2 light management systems. Tool-free electrical connection thanks to push-button connection terminal. Through-wiring possible with included connection box. Energy savings thanks to high system light output: up to 130 lm/W. High color consistency with SDCM 3. Advanced services such as power consumption monitoring and remote maintenance possible with DALI versions. External driver for increased flexibility and easy installation. Low-flicker light thanks to special electronic ballast. Suitable for emergency lighting. 5-year guarantee. Areas of application: Direct replacement for recessed luminaires with fluorescent lamps. Office rooms, conference rooms. Reception areas, entrance areas, corridors, elevators. Suitable for ceiling recessed systems with a grid size of 625 x 625 mm. Technical equipment: Accessories available for various installation options. Connection box with 5-pin connection terminal included. Safety terminals pre-assembled. External ballast included. Suitable for operation with Emergency Conversion Box.
| Property | Value |
| BEG funding program: | Yes |
| Rated luminous flux according to IEC 62722-2-1: | 4320 lm |
| Color temperature: | 4000 K |
| Color consistency (McAdam ellipse): | SDCM3 |
| Protection class (IP): | IP40 |
| Impact resistance: | IK02 |
| Protection class: | II |
| Rated ambient temperature according to IEC62722-2-1: | -10 - 50 °C |
| Length: | 620 mm |
| Width: | 620 mm |
| Height/Depth: | 32 mm |
| Voltage type: | AC/DC |
| Nominal voltage: | 220 V |
| Max. System power: | 33 W |
| Luminaire luminous efficacy: | 130 lm/W |
| With control gear: | yes |
| DALI dimming: | yes |
| DALI-2 dimming: | yes |
| Touch and Dim dimming: | yes |
| Connection type: | Plug-in terminal |
| Number of poles: | 5 |
| Type of wiring: | suitable for through-wiring |
| With Light source: | yes |
| Light emission: | direct |
| Light distributor: | diffuser lens/optics/panel |
| Housing colour: | white |
| Suitable for surface mounting: | yes |
| Suitable for ceiling mounting: | yes |
| Suitable for pendant suspension: | yes |
| Photobiological safety according to EN 62471: | RG0 |
| Weight: | 2.01 |
| Weight unit: | KG |
| Version of the Grid: | matt |
| Installation width: | 600.0 mm |
| Installation length: | 600.0 mm |
| Suitable for emergency lighting: | yes |
| Suitable for recessed mounting: | yes |
| Nominal current: | 150,000 mA |
| Rated service life L70/B50 at 25 °C: | 100,000 h |
| Max. number of luminaires circuit breaker C16: | 65 |
| Max. Number of lights circuit breaker B16: | 40 |
| Replaceable operating device: | yes |
| Installation height/depth: | 50.0 mm |
| Surface protection housing: | powder-coated |
| Brief description: | PANEL COMFORT 625 DALI 33W 840 DALIVR |
