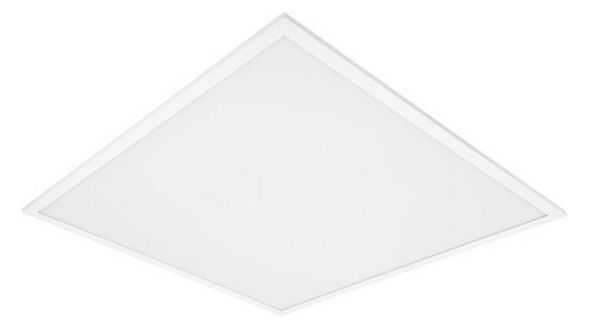

Square insert luminaires with selectable wattage setting (Power Select - PS) and strong glare control, for 625 x 625 mm ceiling systems. Product features: Frame made of extruded aluminum. Polystyrene diffuser. 5-pin connection terminal, cable cross-section up to 5 x 2.5 mm. Luminaire versions with IoT-capable DALI-2 driver available. Versions with CRI 90 available. Service life (L80/B10): 70,000 h (at 25 °C). Product advantages: Very versatile thanks to a selectable wattage setting on the driver (Power Select - PS). Tool-free electrical connection thanks to push-button connection terminal. Through-wiring possible with included connection box. Energy savings thanks to high system light output: up to 130 lm/W. Good glare control (UGR
| Property | Value |
| BEG funding program: | Yes |
| Rated luminous flux according to IEC 62722-2-1: | 3640 lm |
| Color temperature: | 4000 K |
| Color consistency (McAdam ellipse): | SDCM3 |
| Protection class (IP): | IP40 |
| Impact resistance: | IK02 |
| Protection class: | II |
| Rated ambient temperature according to IEC62722-2-1: | -10 - 50 °C |
| Length: | 620 mm |
| Width: | 620 mm |
| Height/Depth: | 32 mm |
| Voltage type: | AC |
| Nominal voltage: | 220 V |
| Max. System power: | 28 W |
| Luminaire luminous efficacy: | 130 lm/W |
| With control gear: | yes |
| Connection type: | plug-in terminal |
| Number of poles: | 2 |
| Type of wiring: | suitable for through-wiring |
| With light source: | yes |
| Light emission: | direct |
| Light distributor: | diffuser lens/optics/panel |
| Housing color: | white |
| Suitable for Surface mounting: | yes |
| Suitable for ceiling mounting: | yes |
| Suitable for pendulum suspension: | yes |
| Photobiological safety according to EN 62471: | RG0 |
| Weight: | 2.07 |
| Weight unit: | KG |
| Grid design: | high gloss |
| Installation width: | 600.0 mm |
| Installation length: | 600.0 mm |
| Suitable for recessed mounting: | yes |
| Suitable for computer workstations according to EN 12464-1: | yes |
| Nominal current: | 125,000 mA |
| Rated service life L70/B50 at 25 °C: | 100,000 h |
| Max. number of luminaires circuit breaker C16: | 24 |
| Max. Number of lights circuit breaker B16: | 14 |
| Luminous flux adjustable: | Levels |
| Replaceable operating device: | yes |
| Installation height/depth: | 50.0 mm |
| Surface protection housing: | powder-coated |
| Without dimming function: | yes |
| Brief description: | PANEL COMFORT 625 UGR<,19 PS 28W 840 U19 PS |
Features
HAB
PL CMFT 625 P 28W 840 U19 PS
Manufacturer
HAN
4099854014413
GTIN
4099854014413
Connection type
Plug-in terminal
Type of wiring
Suitable for through wiring
Execution of the grid
High gloss
Replaceable operating device
Yes
Rated lifetime L70/B50 at 25 °C
100000 hours
Rated luminous flux according to IEC 62722-2-1
3640lm
Rated ambient temperature according to IEC62722-2-1
-10 - 50 °C
Suitable for computer workstations according to EN 12464-1
Yes
Width
620 mm
Installation width
600.0 mm
Installation height/depth
50.0 mm
Installation length
600.0 mm
Color consistency (McAdam ellipse)
SDCM3
Color temperature
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for pendulum suspension
Yes
Housing color
White
Weight
2,07
Weight unit
kg
Height/Depth
32 mm
Short description
PANEL COMFORT 625 UGR<,19 HP 28W 840 U19 HP
Luminaire luminous efficacy
130lm/W
Light emission
Direct
Luminous flux adjustable
Stages
Light distributor
Diffuser lens/optics/panel
Length
620 mm
Max. number of luminaires Circuit breaker B16
14
Max. number of luminaires Circuit breaker C16
24
Max. system performance
28W
With operating device
Yes
With light source
Yes
Nominal voltage
Rated current
125,000mA
Surface protection housing
Powder coated
Without dimming function
Yes
Photobiological safety according to EN 62471
RG0
Number of poles
2
Impact resistance
IK02
IP protection)
IP40
Protection class
II
Voltage type
