LED tubes for electronic ballasts. Product features: Retrofit replacement of existing T5 lamps on HF ballasts. Glass lamp tube with splinter protection for applications e.g. in the food industry. High color consistency: 5 SDCM (threshold unit). Service life: up to 50,000 hours. Low flicker according to EU 2019/2020 (SVM 0.4 / PstLM 1). Protection class: IP20. Compatible with many commercially available electronic ballasts (see also compatibility list). Product advantages: No sagging thanks to glass technology. Simple, quick and safe lamp replacement without rewiring. High luminous flux for demanding lighting tasks. Also suitable for operation at low temperatures. Areas of application: General lighting in ambient temperatures of -20.+45 °C. Offices, public facilities. Supermarkets and department stores. Industry.
| Property | Value |
| Color temperature: | 6500 K |
| Color rendering index CRI: | 80-89 |
| Color consistency (McAdam ellipse): | SDCM5 |
| Protection class (IP): | IP20 |
| Length: | 563 mm |
| Voltage type: | AC |
| Nominal voltage: | 40 V |
| Photobiological safety according to EN 62471: | RG0 |
| Weight: | 0.09 |
| Weight unit: | KG |
| Color: | white |
| Socket: | G5 |
| Diameter: | 16 mm |
| Lamp luminous efficacy: | 142 lm/W |
| Lamp shape: | Tube, double-ended |
| Light color according to EN 12464-1: | daylight white >,5300 K |
| Version Glass/cover: | frosted |
| Average nominal lifetime: | 50000 h |
| Nominal current: | 185 mA |
| Weighted energy consumption in 1,000 hours: | 7 kWh |
| Lamp wattage: | 7 W |
| Luminous flux: | 1000 lm |
| Min. Number of switching operations: | 200000 |
| Beam angle: | 190 ° |
| Rated luminous flux according to IEC 62612: | 1000 lm |
| Energy efficiency index (EEI): | 0.10 |
| Energy spectrum: | A - G |
| Energy efficiency class according to EU Directive 2019/2015: | E |

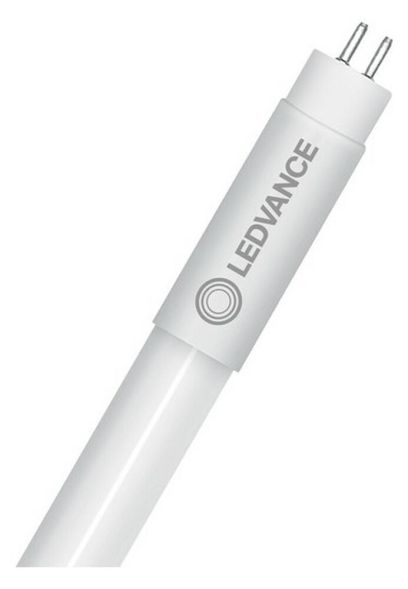

| Short description: | LED TUBE T5 HF P 549 mm 7W 865 |
