Cost-efficient LED tubes for electromagnetic ballasts (KVG/VVG). Product features: LED replacement for conventional T8 fluorescent lamps with G13 base in KVG luminaires or on mains voltage. Low flicker according to EU 2019/2020 (SVM 0.4 / PstLM 1). Glass tube. High luminous flux for demanding lighting tasks. Mercury-free and RoHS compliant. Homogeneous illumination. Protection class: IP20. Product advantages: No sagging thanks to the glass tube. Energy savings of up to 50% (compared to T8 fluorescent lamp). Simple, quick and safe lamp replacement without rewiring. Full brightness without warm-up phase, therefore ideal in combination with sensors. Very high switching strength. Also suitable for operation at low temperatures. Areas of application: General lighting in ambient temperatures of -20.+45 °C. Corridors, stairwells and parking garages. Industry. Warehouses. Cold storage and storage rooms. Household applications. Supermarkets and department stores. Technical features: Suitable for operation with low-loss and conventional ballasts.
| Property | Value |
| Color temperature: | 4000 K |
| Color rendering index CRI: | 80-89 |
| Color consistency (McAdam ellipse): | SDCM6 |
| Protection class (IP): | IP20 |
| Length: | 1213 mm |
| Voltage type: | AC |
| Nominal voltage: | 220 V |
| Power factor: | 0.90 |
| Photobiological safety according to EN 62471: | RG0 |
| Weight: | 0.22 |
| Weight unit: | KG |
| Color: | white |
| Socket: | G13 |
| Diameter: | 26.80 mm |
| Lamp luminous efficacy: | 120 lm/W |
| Lamp shape: | Tube, double-ended |
| Light color according to EN 12464-1: | neutral white 3300 to 5300 K |
| Version Glass/cover: | frosted |
| Average nominal service life: | 30000 h |
| Nominal current: | 100 mA |
| Weighted energy consumption in 1,000 hours: | 20 kWh |
| Lamp wattage: | 20 W |
| Luminous flux: | 2400 lm |
| Lamp designation: | T8 |
| Min. Number of switching operations: | 200000 |
| Rated luminous flux according to IEC 62612: | 2400 lm |
| Energy spectrum: | A - G |
| Energy efficiency class according to EU Directive 2019/2015: | E |

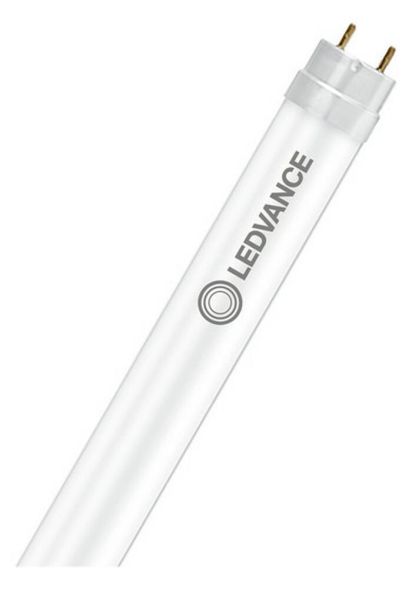

| Short description: | LED TUBE T8 EM ULTRA OUTPUT V 1200 mm 20W 840 |
