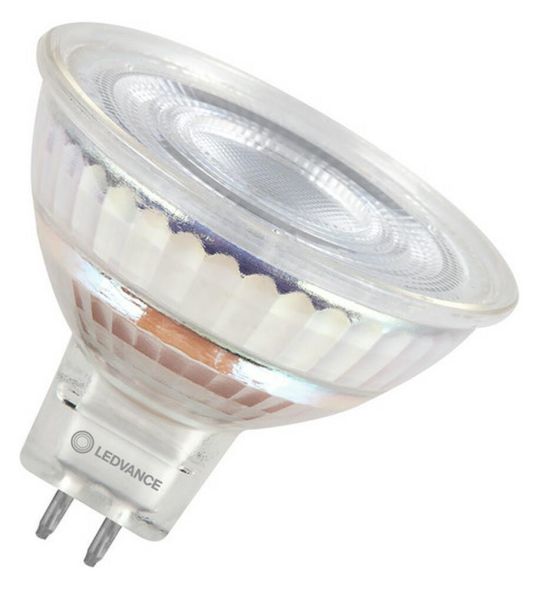

Dimmable low-voltage LED reflector lamps MR16 with retrofit plug-in base. Product features: LED alternative to low-voltage halogen lamps. High color consistency: 5 SDCM (threshold unit). Dimmable. Base: GU5.3. Lamp made of glass. Very high color rendering (Ra: 90). Service life: up to 25,000 hours. Product advantages: Simple, quick and safe lamp replacement without rewiring. Design, dimensions, luminous flux comparable to an incandescent or halogen lamp. Low maintenance due to long service life. No UV and near-IR components in the light beam. Continuous dimming. Very high dimmer compatibility, see also www.ledvance.de/dim. Compatible with many commercially available electronic ballasts (see also compatibility list). 100% light immediately, no warm-up time. Areas of application: Sales and exhibition rooms. Household applications. Commercial applications. Accent lighting. For outdoor use only in suitable outdoor lights.
| Property | Value |
| Color temperature: | 4000 K |
| Color rendering index CRI: | 90-100 |
| Color consistency (McAdam ellipse): | SDCM6 |
| Protection class (IP): | IP20 |
| Length: | 44 mm |
| Voltage type: | AC/DC |
| Nominal voltage: | 12 V |
| Power factor: | 0.90 |
| Total harmonic distortion (THD): | 50 |
| Photobiological safety according to EN 62471: | RG1 |
| Weight: | 0.05 |
| Weight unit: | KG |
| Socket: | GU5.3 |
| Diameter: | 50 mm |
| Lamp luminous efficacy: | 77 lm/W |
| Luminous intensity: | 1150 cd |
| Lamp shape: | Reflector |
| Light color according to EN 12464-1: | neutral white 3300 to 5300 K |
| Average nominal lifetime: | 25000 h |
| Nominal current: | 760 mA |
| Weighted energy consumption in 1,000 hours: | 8 kWh |
| Lamp wattage: | 8 W |
| Luminous flux: | 621 lm |
| Lamp designation: | MR16 |
| Min. Number of switching operations: | 100000 |
| Beam angle: | 36 ° |
| Rated luminous flux according to IEC 62612: | 621 lm |
| Energy spectrum: | A - G |
| Energy efficiency class according to EU Directive 2019/2015: | G |
| Short description: | LED MR16 DIM P 8W 940 GU5.3 |
