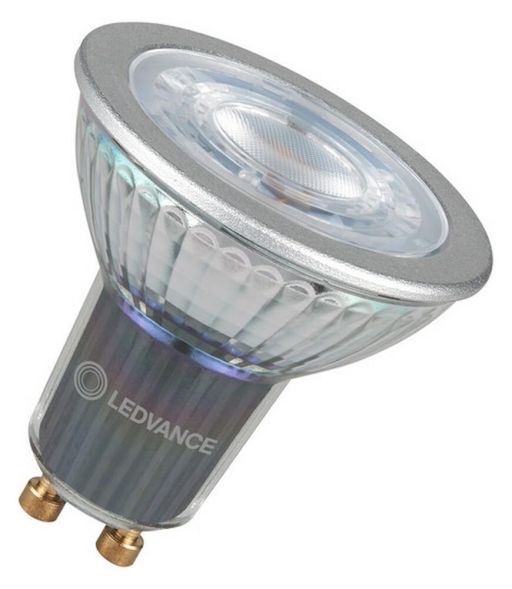

LED reflector lamps. Product features: LED alternative to high-voltage halogen lamps. High color consistency: 3 SDCM. Dimmable. Base: GU10. Lamp made of glass. Excellent color rendering (Ra: 97). Lifespan: up to 40,000 hours. Product advantages: Simple, quick and safe lamp replacement without rewiring. Design, dimensions, luminous flux comparable to an incandescent or halogen lamp. Low maintenance due to long lifespan. No UV and near-IR components in the light beam. Continuous dimming. Very high dimmer compatibility, see also www.ledvance.de/dim. 100% light immediately, no warm-up time. Areas of application: Sales and exhibition rooms. Household applications. Commercial use. Accent lighting. Outdoor use only in suitable outdoor lights.
| Property | Value |
| Color temperature: | 2700 K |
| Color rendering index CRI: | 90-100 |
| Color consistency (McAdam ellipse): | SDCM3 |
| Protection class (IP): | IP20 |
| Length: | 52.00 mm |
| Voltage type: | AC |
| Nominal voltage: | 220 - 240 V |
| Power factor: | 0.70 |
| Photobiological safety according to EN 62471: | RG1 |
| Weight: | 0.06 |
| Weight unit: | KG |
| Socket: | GU10 |
| Diameter: | 50.00 mm |
| Lamp luminous efficacy: | 60 lm/W |
| Luminous intensity: | 840 cd |
| Lamp shape: | Reflector |
| Light color according to EN 12464-1: | warm white |
| Average nominal service life: | 40000 h |
| Nominal current: | 52 mA |
| Weighted energy consumption in 1,000 hours: | 10.00 kWh |
| Lamp wattage: | 9.5 W |
| Luminous flux: | 575 lm |
| Lamp designation: | PAR16 |
| Min. Number of switching operations: | 100000 |
| Beam angle: | 36.00 ° |
| Rated luminous flux according to IEC 62612: | 575 lm |
| Energy efficiency index (EEI): | 0.19 |
| Energy spectrum: | A - G |
| Energy efficiency class according to EU Directive 2019/2015: | G |
| Short description: | LED PAR16 DIM S 9.5W 927 GU10 |
Features
Energy efficiency index (EEI)
0.19
HAB
LED PAR168036 DIM 9.5W 927 GU10 S-
Manufacturer
HAN
4099854070792
GTIN
4099854070792
Beam angle
36.00 °
Rated luminous flux according to IEC 62612
575lm
Diameter
50.00 mm
Energy spectrum
A - G
Energy efficiency class according to EU Directive 2019/2015
G
Color consistency (McAdam ellipse)
SDCM3
Color temperature
Color rendering index CRI
90-100
Weight
0,06
Weighted energy consumption in 1,000 hours
10.00 kWh
Weight unit
kg
Short description
LED PAR16 DIM S 9.5W 927 GU10
Lamp designation
PAR16
Lamp shape
Lamp power
Lamp luminous efficacy
60lm/W
Power factor
0.70
Light colour according to EN 12464-1
Luminous flux
575lm
Light intensity
840 cd
Length
52.00 mm
Min. number of switching operations
100000
Average nominal life
40000 hours
Nominal voltage
Rated current
52mA
Photobiological safety according to EN 62471
RG1
IP protection)
IP20
Base
GU10
Voltage type
